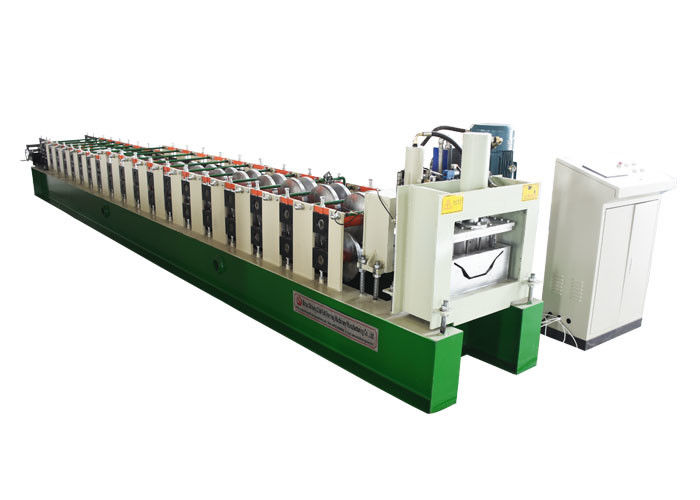

Cold Steel Roll Former RainWater Downpipe Gutter Forming Machine

Cold Steel Roll Former RainWater Downpipe Gutter Forming Machine
Cold Steel Roll Former RainWater Downpipe Gutter Forming Machine

Large Image :  Cold Steel Roll Former RainWater Downpipe Gutter Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: shitong
Certification: CE/ISO9001
Model Number: 400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 13500$
Packaging Details: the main machine is nude
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Color: Customer Request
Name: Gutter Roll Forming Machine Power: 380V/3P/50HZ
Voltage: AC380/50Hz Or At Buyer's Requirement Type: Automatic
Highlight:

cold steel roll former machine

,

rainwater downpipe gutter former

,

hydraulic decoiler gutter forming machine

Cold Steel Roll Former RainWater Downpipe Gutter Forming Machine
Product Overview

This Cold Steel Roll Former is engineered exclusively for manufacturing rainwater downpipes and gutters, focusing on high efficiency, precision, and durability to meet the demands of construction and plumbing industries.

It adopts cold roll forming technology—processing PPGI (pre-painted galvanized steel) into standardized, seamless downpipe/gutter profiles without high-temperature treatment, preserving the material's structural integrity and surface finish.

As a new, factory-fresh piece of equipment, it complies with ISO and CE certifications, ensuring adherence to international quality and safety standards.

Quick Details & Core Technical Parameters
Quick Detail Specific Information
Warranty 2 Years (comprehensive coverage for core components)
Machine Type Tile Forming Machine (specialized for downpipe/gutter cold roll forming)
Production Capacity 8-12m/min (standard); 10-16m/min (adjustable via configuration)
Certification ISO, CE
Condition New
Processed Material Steel (PPGI as primary raw material)
Primary Use Rainwater downpipe and gutter production
Place of Origin Hebei, China (Mainland)
Voltage 380V (compatible with industrial power grids)
Dimension (L×W×H) 8×1.2×1.5m (space-efficient layout for factory installation)
Weight 6T (robust build for long-term heavy-duty operation)
Roller Material 45# Steel (high strength, wear-resistant for repeated forming)
Customizable Color Available as per customer request
Control System PLC (intelligent digital control for parameter setting)
Cutting Blade Material Cr12 Mov (high-hardness alloy steel)
Processable Thickness 0.3-0.8mm (covers common PPGI thicknesses)
Detailed Technical Parameters
Parameter Category Specifications
Feeding Width Customizable (as per customer order)
Forming Thickness 0.3-0.8mm
Forming Rows/Stations 14 rows
Shaft Material 45# Steel
Shaft Diameter 70mm
Roller Material 45# Steel
Blade Material Cr12
Driving Mode Chains + Gear
Forming Speed 10-16m/min (adjustable)
Cutting Precision Mould-based (tolerance ≤ ±1mm)
Core Machine Components & Functions
No. Component Name Function Description
1 Manual Uncoiler Stably unrolls PPGI coils to ensure continuous, uniform feeding to the forming system
2 Main Forming Machine Core component for cold roll forming: uses 14 rows of rollers to shape flat PPGI sheets
3 Computer Control Cabinet Houses the PLC control system for parameter setting and process monitoring
4 Power & Pump Station Provides power for the entire machine and hydraulic pressure for cutting
5 Hydraulic Cutting Unit Uses Cr12 Mov blades for precision cutting to set lengths
Cooperation Terms
Warranty & After-Sales
  • Warranty Period: 2 years from the date of delivery
  • Lifelong Support: Technical consultation, spare parts supply, and on-site maintenance services available
Packaging & Transportation
  • Packaging Method: Moisture-proof plastic film with additional foam padding and wooden crates for vulnerable components
  • Transportation: Shipped via container with door-to-door or port-to-port delivery options
Payment & Delivery Time
  • Payment Term: 30% deposit via T/T in advance, 70% balance after inspection
  • Delivery Time: Production and delivery completed within reasonable period after deposit
