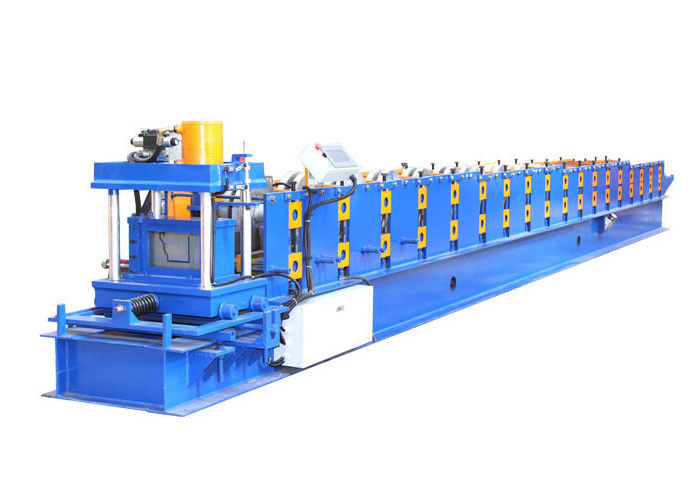

Metal Steel Sheet Rainwater Gutter / Sink Drain Roll Forming Machine Galvanized

Metal Steel Sheet Rainwater Gutter / Sink Drain Roll Forming Machine Galvanized
Metal Steel Sheet Rainwater Gutter / Sink Drain Roll Forming Machine Galvanized Metal Steel Sheet Rainwater Gutter / Sink Drain Roll Forming Machine Galvanized Metal Steel Sheet Rainwater Gutter / Sink Drain Roll Forming Machine Galvanized

Large Image :  Metal Steel Sheet Rainwater Gutter / Sink Drain Roll Forming Machine Galvanized

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: T400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Detailed Product Description
Machine Size:: 12*1*1.5m Machine Color:: Blue And Orange
Material:: Galvanized Coil Usage:: Floor Deck Sheet Making
Machine Power: Electric And Hydraulic Machine Color: Bule And Orange
High Light:

Galvanized Gutter Roll Forming Machine

,

sink drain roll forming machine

,

Rainwater Gutter Roll Forming Machine

China manufacturer galvanized metal steel sheet roof valley rainwater gutter / sink drain roll forming machine line

1. Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine Cold Galvanizing Line
---- We make the machine have a strong frame, the standard raw material provide a high ensurance.
---- The core part is the rollers, we spend high cost to ensure the rollers quality.
---- This roll forming machine is special for steel roofing making.
---- We have engineer design the machine rollers according to the profile custmer want to produce.
2.China manufacturer galvanized metal steel sheet roof valley rainwater gutter / sink drain roll forming machine line   parameters

Raw material
material PPGI, PPGL, GI, Steel, Aluiminum
thickness of coil sheet 0.3 to 0.6 mm
material expand width 400mm
Efficiency width 280mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm
main frame 300MM H steel
forming steps 24stations
productivity 15-20  m/min
hydraulic station power 11 KW
hydraulic pressure 10-12MPa
appearance size 12000mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating
Service life 20 years



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. Shitong cold roll forming machine company profiles


Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. FAQ (about our roll forming machine)
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
8. How long the machine could be made?

Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
9. Roll forming machine pictures:
Metal Steel Sheet Rainwater Gutter / Sink Drain Roll Forming Machine Galvanized 0

Metal Steel Sheet Rainwater Gutter / Sink Drain Roll Forming Machine Galvanized 1

Metal Steel Sheet Rainwater Gutter / Sink Drain Roll Forming Machine Galvanized 2
