Payment & Shipping Terms:
|Machine Size::||8*1.5*1.5m||Machine Color::||Blue And Orange|
|Material::||Galvanized Coil||Usage::||Roofing Sheet Making|
|Machine Power:||Electric And Hydraulic||Machine Color:||Bule And Orange|
Galvanizing Double Layer Roll Forming Machine,
Double Layer roll formers,
Corrugated Steel roll formers
1. Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine Cold Galvanizing Line
---- We make the machine have a strong frame, the standard raw material provide a high ensurance.
---- The core part is the rollers, we spend high cost to ensure the rollers quality.
---- This roll forming machine is special for steel roofing making.
---- We have engineer design the machine rollers according to the profile custmer want to produce.
2. Double Layer Roll Forming Machine rollformers Metal Roofing Corrugated Steel Sheet Wall Panel tile making machine parameters
|material||PPGI, PPGL, GI, Steel, Aluiminum|
|thickness of coil sheet||0.3 to 0.8 mm|
|material expand width||1200mm|
|roller material||high grade NO. 45 forged steel with 0.05mm hard chrome plating|
|shaft material||high grade NO. 45 carbon wrought steel|
|cutting blade||Cr12 mould steel with quenched treatment|
|diameter of shaft||70mm|
|main frame||300MM H steel|
|forming steps||17 stations|
|hydraulic station power||4 KW|
|hydraulic oil||40# hydraulic oil|
|Electric tension||380V 50 Hz 3 Phase or as your requirement|
|Cut Mode||Hydraulic forming after cutting off|
|Cutter materia||Cr12 Heat Treatment|
|Electronic control system||PLC, Touch Screen, Encoding counter|
|Color||Blue, green or yellow or as your requirement|
|Rolling material||45# steel,roller surfaces polishing, hard plating|
|Service life||20 years|
|1||Manual uncoiler||1 set|
|2||Feeding and leveling device||1 set|
|3||Roll forming system||1 set|
|4||Hydraulic punching and cutting||1 set|
|5||Product support frame||1 set|
|6||PLC Control System||1 set|
3. Shitong cold roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. FAQ (about our roll forming machine)
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

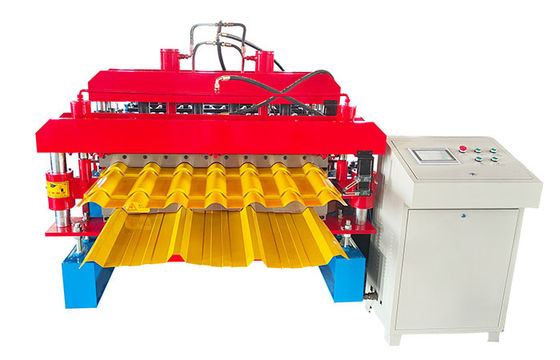

9. Roll forming machine pictures:
