Product Details:
Payment & Shipping Terms:
|
| Name: | Floor Deck Roll Forming Machine | Speed: | 10-15 M/min |
|---|---|---|---|
| Side Plate Thickness: | 16 Mm | Total Power: | 4kw |
| Appearance Size (About): | 5000mm*600mm*1500mm | Weight(About): | 3 Tons |
| High Light: | Self Lock Standing Seam Roll Forming Machine,Standing Seam Roll Forming Machine 4kw,Steel Sheet Roll Forming Machine 4kw |
||

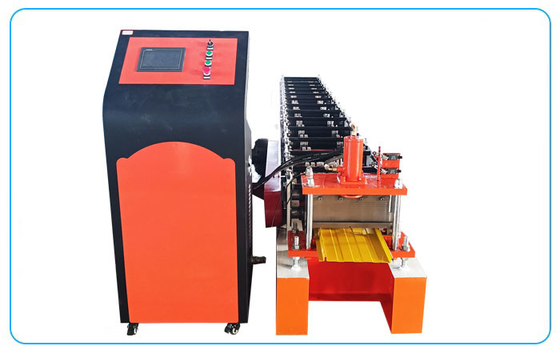

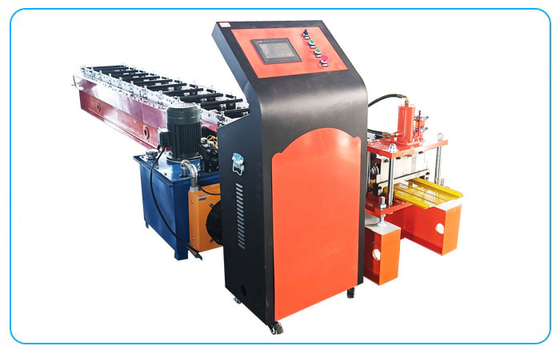

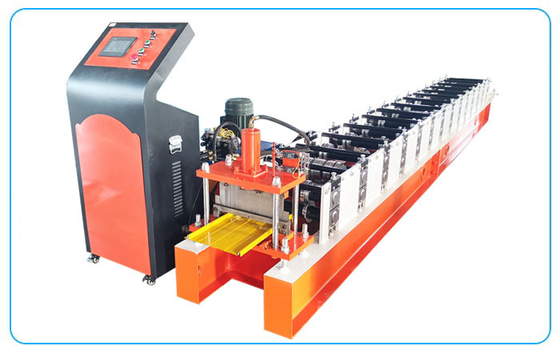

Ghana Special New Type Roofing Color Steel Sheet Self Lock Standing Seam Roll Forming Machine
Components and Technical Specification
| No | Technical Specification | |
| 1 |
Manual Uncoiler
|
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T Inner diameter: 500-508mm |
| 2 |
Feeding Table
|
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
| 3 |
Main Roll Forming Machine
|
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
|
| 4 |
Hydraulic System
|
Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. |
| 6 | Computer Control Cabinet |
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |
|
Shearing Mechanism
|
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
|
| 7 |
Output table
|
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
|
Botou Shitong Machinery Co.. Ltd. is a professional manufacturer dedicated Color light steel construction . C. Z steel equipment and rolling, bending molding equipment enterprises. with the design and manufacture of various types of steel sheet thickness roll forming production line strength.
the advantages of us:
STD terms
the machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.
