Product Details:
Payment & Shipping Terms:
|
| Material Thickness: | 0.3-0.7mm | Control System: | PLC Control System |
|---|---|---|---|
| Voltage: | 380V 50Hz 3Phases Or As Your Requirment | Driving Method: | A/C Motor |
| Production Capacity: | 8-12 M/min | Cutting Blade Material: | Cr12MoV High Grade Steel |
| High Light: | PLC Controlled Ridge Cap Roll Forming Machine,Ridge Cap Roll Forming Machine 3Phases,metal roof roll forming machine 3Phases |
||
Roof Ridge Tiles Building Materials Machinery Metal Roof Ridge Cap Roll Forming Machine
1. Roof Ridge Tiles Building Materials Machinery Metal Roof Ridge Cap Roll Forming Machine
Roof ridge caps produced using this machine are used for a variety of light steel structure construction and large building project.
We design the rollers according to customer's requirements
We also provide popular designs for customer's reference.
Our control system is friendly with user, just put in the length and pieces you want to produce, machine will working automatically.
The components of the roll forming machine line includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. Roof Ridge Tiles Building Materials Machinery Metal Roof Ridge Cap Roll Forming Machine parameters
| NO. | Item | Specification |
| 1 | Processing material | PPGI, GI Steel |
| 2 | Processing thickness | 0.2-0.8mm |
| 3. | Coil width | 500mm |
| 4. | cover width | 312mm |
| 5. | Material of main frame | 300H steel |
| 6. | Diameter of Soild shaft | 70mm, high grade 45# steel |
| 7. | Roller | Quenched and tempered treatment,hard chrome coated 0.05-0.07mm |
| 8. | Thickness of middle plate | 16mm |
| 9. | Forming station | 16 station |
| 10. | Transmission | By chain(1.0 inch) link bearing model 6210 |
| 11 | Power of main motor | 5.5kw with Cycloidal reducer |
| 12 | Power of pump station | 4kw |
| 13 | Forming speed | about 8-10m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA(TAIWAN)/Mitsubishi |
| 16 | Material of razor blades | Cr 12, quenching 58-62ºC |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). |
"The quality first, The prestige first" is the service aim of our company, we wish to customize the best machines for customers. So all stuff from SHITONG welcome anyone who are interested in our machines come to investigate and talk about cooperation.
SHITONG not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
4. Features of the roll forming machine production line
(1)Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
(2)1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 17+ years experience;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 60m/min;
5). Very easy to install and operate the roll forming machine.
5. FAQ
5.1:.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
5.2:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
5.3: - Can you finish the machine during the delivery time?
A: We will finish the machine in time according to determined lead time.
5.4:- Can you provide some spare parts?
A:Yes, of course. The quick-wear parts are sent to you together with the machine.

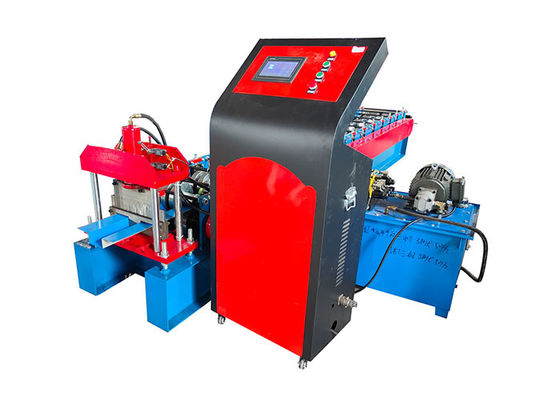

6. Machine pictures:
