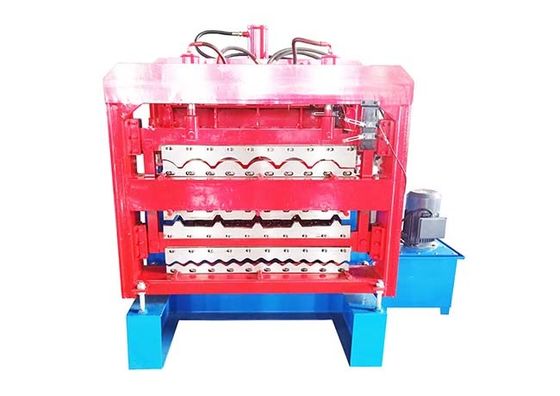

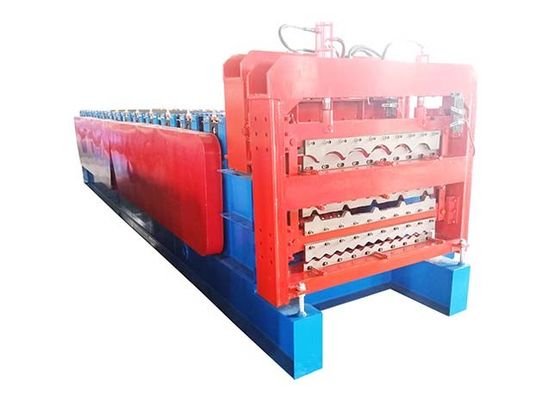

IBR Trapezoidal Corrugated Tile Roof Model Three Layer Roll Forming Machine for South Africa

IBR Trapezoidal Corrugated Tile Roof Model Three Layer Roll Forming Machine for South Africa

IBR Trapezoidal Corrugated Tile Roof Model Three Layer Roll Forming Machine for South Africa
IBR Trapezoidal Corrugated Tile Roof Model Three Layer Roll Forming Machine for South Africa
video play

Large Image :  IBR Trapezoidal Corrugated Tile Roof Model Three Layer Roll Forming Machine for South Africa

Product Details:
Place of Origin: China
Brand Name: SHITONG
Certification: CE, ISO 9000
Model Number: 762-760-840
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us for more
Packaging Details: The machine is covered with plastic film if in FCL shipping; or we will put the machines and part into wooden boxes in LCL shipping.
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: set 20 month
Detailed Product Description
Machine Size: 8.6*1.2*1.5m Machine Color: Blue And Orange
Material: Galvanized Coil Usage: Steel Roofing
Control System: PLC Control Cutting System: Hydraulic Cutting System
Condition: Brand New Voltage: 380V , 440V , 220V Or Customized
Cutting Blade: Cr12MoV Transmission Mode: By Chain

Three Layer Roll Forming Machine IBR Trapezoidal Corrugated Tile Roof Model For South Africa

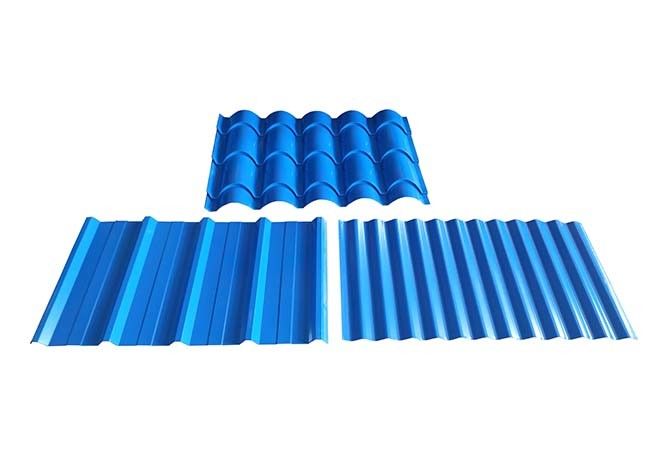

1. Three layer roll forming machine for steel tile making

---- To design and make the best roll forming machine, we took EUROPEAN quality standard;

---- Choose the best material and components, and adopting our 17+ years experience;

---- We achieves that the machine capacity is double of the competitors;

---- The machine working speed can be 60m/min;

---- Very easy to install and operate the roll forming machine.


2. Three layer roll forming machine for steel tile making parameters

No. Item Specification
1 Can Formed Material GI,AI
2 Equipment operation Automatic
3 Voltage 380V 60Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.3-0.7mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 5500mmx1200mmx1400mm
8 Speed 12-15m/min
9 Diameter of shaft 40mm
10 Weight of the Machine 2200-2500KGS
11 Material of rollers Cr12 steel quenched and chromed
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 8kw
15 Power of hydraulic system 4kw
16 Power of main molding core 4kw
17 Transmission Chain with gears
Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set


3. roll forming machine company profiles

We are specialized in designing,manufacturing the roll forming machines e.g cable tray forming machine,supermarket rack forming machine,expressway guardrail forming machine,grain silo forming machine,solar strut forming machine etc. These products are used widely in the field of steel structure ,building construction,supermarkets,factory warehouses,schools roofing,grain silos etc . In addition we also can manufacture all types of steel coils slitting machine,coils cut to length machines and tube mills We are ready to establish the business relations with the overseas customers and we also believe" the opportunity here,here you are" Our commitment is high-quality and in-time service, our goal is customer satisfaction.



4. What we can do

We can produce not only Three layer roll forming machine, but also other kinds of roll forming machines. Such as Automatic light steel channel frame roll forming machine,, fully automatic, computer operated rollforming machine for different open profiles (purlines), such as U-, C-, Z- and diverse widths and forms. The width adjustment of the rolls for profiling of purlins with diverse widths proceeds infinitely, using just one profilling unit. Cassette type design implies the production of different profile forms by changing the cassettes with their different profiling units. Through the integrated flying punching machine required assembly holes can be made during the production process.


5. FAQ (about our roll forming machine)

5.1. Does one machine can only produce one size? Not exactly, it depends on the machine.

5.2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.

5.3. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.

5.4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.

5.5. Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport.

5.6. You are a trade company or factory? We are a Manufacturer.


6.Roll forming machine pictures:

IBR Trapezoidal Corrugated Tile Roof Model Three Layer Roll Forming Machine for South Africa 0IBR Trapezoidal Corrugated Tile Roof Model Three Layer Roll Forming Machine for South Africa 1IBR Trapezoidal Corrugated Tile Roof Model Three Layer Roll Forming Machine for South Africa 2
