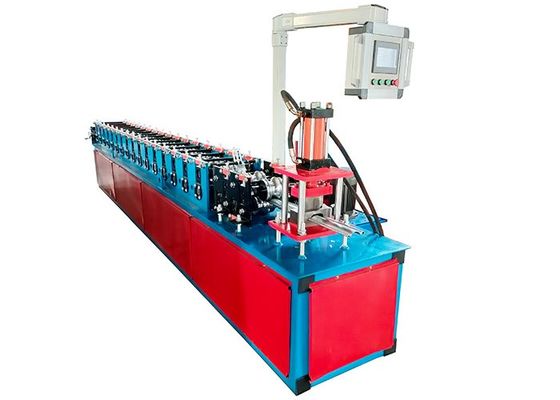

140mm Metal Touch Roller Shutter Door Roll Forming Machine

140mm Metal Touch Roller Shutter Door Roll Forming Machine
140mm Metal Touch Roller Shutter Door Roll Forming Machine

Large Image :  140mm Metal Touch Roller Shutter Door Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: shitong
Certification: CE/ ISO9001
Model Number: ST 102
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact me to get the lowest price
Packaging Details: the main machine is nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35 sets per month
Detailed Product Description
Name: Rolling Shutter Profile Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Online Support,Field Installation
Warranty: 2 Years Raw Material: PPGI,Color Steel Sheet,Galvanized Sheet
Control System: PLC Control Box Type: Shutter Door Door Frame Machine
Roller Material: 45# Steel After Hot Treatment Color: Client's Request
Cutting Type: Hydraulic Cutting Shaft Material: High Grade No.45 Forged
Production Capacity: 8-12m/min
Highlight:

touch roller shutter door roll forming machine

,

140mm roller shutter door roll forming machine

,

touchscreen roller shutter machine

Metal Steel Roller Shutter Door Roll Forming Machine Forming Line





Production Process:



Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving







Suitable Material Material Galvanized Sheet
Width 140 mm
Thickness 0.7-0.8 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 12 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50mm
Material of blade Cr12 Heat Treatment
Speed 8-12 m/min
Total power 4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 4600mm*800mm*1500mm
Electronic control system PLC +Touch Screen





Standard Configuration:



3 tons Manual decoiler 1 set
Main roll forming machine 1 set
Hydraulic pump system 1 set
PLC control system 1 set
Receiving Table 1 set
Spare parts 1 set



Product Description
Metal Steel Roller Shutter Door Roll Forming Machine Forming Line
The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system.
The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.



We have professional team to design kinds of roll forming machines according to our customers requirement.We can send our technicians to customer's factory for installation, and teach customer's workers how to use the machines. If there is any problems happened to the machine, we will provide solution at once.Hope we could establish win-win business relations in the soon future!



We treat all customers as friend ,before purchasing ,we guide our customer to choose suit machine .after purchase,we supply effective after-sale service .We still try our best to let all customers satisfied not only our machine quality but also our service .



1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the TWO-YEARS period, we could supply you the replacement parts for free .
