Home ProductsDouble Layer Roll Forming Machine

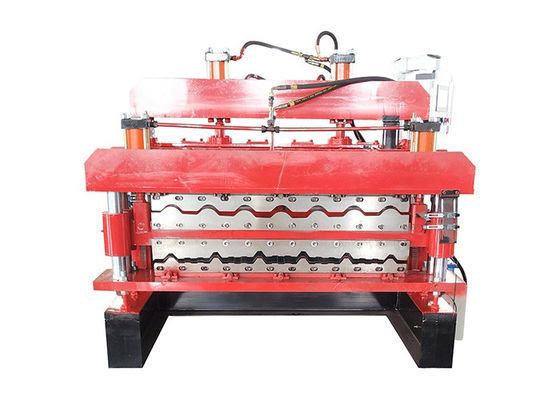

Glazed Tile Roofing Sheet Ibr Panel Cold Roll Forming Machine

Glazed Tile Roofing Sheet Ibr Panel Cold Roll Forming Machine

Glazed Tile Roofing Sheet Ibr Panel Cold Roll Forming Machine
Glazed Tile Roofing Sheet Ibr Panel Cold Roll Forming Machine

Large Image :  Glazed Tile Roofing Sheet Ibr Panel Cold Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: ST
Certification: CE ISO
Model Number: 1000-1015
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Voltage: 380V Name: Double Layer Roll Forming Machine
After-sales Service Provided: Online Support Warranty: 1 Year
Control System: PLC Power(w): 5.5 Kw
Diameter Of Shafts: 70mm Color: Blue
Thickness: 0.-0.8mm Speed: 15-20 M/min
High Light:

ibr panel cold roll forming machine


glazed tile cold roll forming machine


cold ibr roll forming machine

Glazed tile roofing sheet and ibr panel double layer roll forming machine



Glazed Tile Roofing Sheet Ibr Panel Cold Roll Forming Machine 0

Production Process:


Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving


1. Machine Specifications


NO. Item Parameter
1 material color steel/galvanized steel/aluminium(if G550 please check with us)
2 feeding width as customers' request
3 material thinkness as customers' request
4 machine size 6.8*1.5*1.9
5 machine weight 5.5T
6 voltage requirement 380V60Hz3P
7 working speed 10-18m/min
8 machine base 350# steel welded
9 Frame Steel plate screwed
10 forming steps 11steps
11 rollers 45# steel with quenching
12 shaft 45#steel,diameter 80mm
13 transmission 1inch chain or gear
14 PLC Delta
15 motor 4kw
16 pump 4kw
17 cutter Cr12 HRC 58-62℃
18 after-sale service 24h*7days*1year’s on line and engineer service overseas
19 warranty



Standard Configuration:

5 tons Manual decoiler 1 set
Main roll forming machine 1 set
Hydraulic pump system 1 set
PLC control system 1 set
Receiving Table 2 sets
Spare parts 1 box


Spare Parts

Glazed Tile Roofing Sheet Ibr Panel Cold Roll Forming Machine 1

Packing Method


1.Tighten to container with steel wire rope and welded machine with container by angel iron .
2.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic).
3.PLC contral system and motor pump are packed in wooden box with water proof paper coverage.

4.Main machine is nude package .And we can also as clien's requirements.

5.Main machine is nude,the computer control box is packed by wooden carton box.

6.Control box and easy damaged parts:protective paper and waterproof packaging material,or wooden boxes . mian forming.

7.device:waterproof material hydraulic device and spare parts:paper boxes with waterproof material.


Payment Term


30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.




Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.


We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,shutter door machine, floor decking machine and other associated equipment. Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.

A:- What service can you provide before order?

- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, etc. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.

B:- Can you finish the machine during the delivery time?

- We will finish the machine in time according to determined lead time.

C:- Can you provide some spare parts?

- Yes, of course. The quick-wear parts are sent to you together with the machine.

D:- What is the after- sale service?

- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Round trip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.

The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per day to maintain the machine. And the components are not free, if you need to get it from us.

E:- Any other service?

- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.

It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.

Glazed Tile Roofing Sheet Ibr Panel Cold Roll Forming Machine 2
