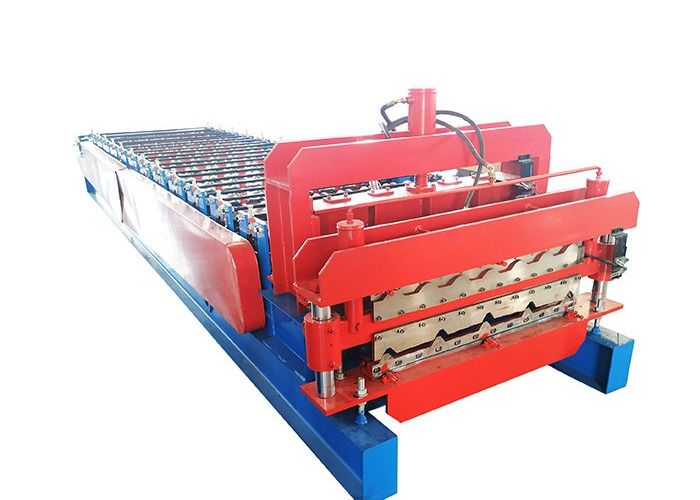

Fully Automatic PLC 0.3mm Roll Forming Equipment 20m/Min

Fully Automatic PLC 0.3mm Roll Forming Equipment 20m/Min

Fully Automatic PLC 0.3mm Roll Forming Equipment 20m/Min
Fully Automatic PLC 0.3mm Roll Forming Equipment 20m/Min
video play

Large Image :  Fully Automatic PLC 0.3mm Roll Forming Equipment 20m/Min

Product Details:
Place of Origin: China
Brand Name: ST
Certification: CE ISO
Model Number: 960-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Voltage: 380V Name: Double Layer Roll Forming Machine
After-sales Service Provided: Online Support Warranty: 1 Year
Control System: PLC Power(w): 5.5 Kw
Diameter Of Shafts: 70mm Color: Blue
Thickness: 0.3mm-0.8mm Speed: 15-20m/min
High Light:

0.3mm roll forming equipment


PLC roll forming equipment


roll forming equipment 20m/min

Fully automatic double layer metal roof iron tile sheet making machine

Double layer roofing tile machine: can produce two type sheets, one corrugated sheet and one IBR sheet. The input material are both 1200 mm width with thickness 0.3-0.8mm. Machine speed 20-25 m per minute. With pre-cutting device and double inches chain. This machine cheaper and stable. Widely used in South America zone. Expecially Bolivia. We can also supply you the PPGI and GI coils. We know some good supplier. We can put the coils with the machine in the same container.

Processing Flow Diagram of Machine:


Fully Automatic PLC 0.3mm Roll Forming Equipment 20m/Min 0

Production Process:


Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving


Technical parameters:


Suitable Material Material GI, PPGI, PPGL
Width 1200 mm
Thickness 0.3-0.8 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers

Up layer : 10 stations

Down layer : 13 stations

Material of shafts High grade 45# forged steel
Diameter of shafts 70mm
Material of blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed 15-20 m/min
Side plate thickness 16 mm
Chain size 1 inch
Total power 4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 6000mm*1500mm*1600mm
Weight(About) 4.5 tons
Electronic control system PLC + Touch Screen


Standard Configuration:

5 tons Manual decoiler 1 set
Main roll forming machine 1 set
Hydraulic pump system 1 set
PLC control system 1 set
Receiving Table 2 sets
Spare parts 1 box


Spare Parts

Fully Automatic PLC 0.3mm Roll Forming Equipment 20m/Min 1

Packing Method


Main machine is packaged with plastic film


All machines need one 40 feet container to hold


Payment Term


30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.




Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.


We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,shutter door machine, floor decking machine and other associated equipment. Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.


1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warrenty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost ..
