Chain Drive 20m/Min 0.2mm PLC Metal Roof Making Machine

Chain Drive 20m/Min 0.2mm PLC Metal Roof Making Machine
Chain Drive 20m/Min 0.2mm PLC Metal Roof Making Machine Chain Drive 20m/Min 0.2mm PLC Metal Roof Making Machine Chain Drive 20m/Min 0.2mm PLC Metal Roof Making Machine Chain Drive 20m/Min 0.2mm PLC Metal Roof Making Machine

Large Image :  Chain Drive 20m/Min 0.2mm PLC Metal Roof Making Machine

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Detailed Product Description
Machine Size:: 9.6*1.2*1.5m Machine Color: Blue And Orange
Certificate: GE, ISO Working Speed: 20-25m/min
Maching Weight: 7000kg Cutter Type: Double Cylinder
Color: Blue Control: PLC
Number Of Rows: 13 Shaft Material: 45roof Tile Roll Forming Machine High Grade Steel
High Light:

0.2mm metal roof making machine

,

20m/min metal roof making machine

,

PLC Metal Roof Making Machine

20-25m/min high running speed roofing sheet roll forming machine for roofing making
1. 20-25m/min high running speed roofing sheet roll forming machine for roofing making
---- Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
---- Good service: we provide the technical support for whole life of our machines.
---- Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
---- Easy operation:All machine cotrolling by PLC computer controlling systerm.
2. 20-25m/min high running speed roofing sheet roll forming machine for roofing making parameters

1.Weight capacity of decoiler4T
2.Appearance Size(L*W*H)6500*1500*1500
3.Raw material /feeding sheet materialColored steel & galvanized steel
4.Roller material45roof tile roll forming machine high grade steel
5.Shaft material45roof tile roll forming machine high grade steel
6.Kind of driveChain drive
7.Cutting systemAutomatic hydyaulic cutting
8.Cutting blade materialCr 12 high grade steel
9.Frame material300 H-high grade steel
10.Control systemTotally automatic PLC control system
11.Main power3kw
12.Roller stations13 rows
13.Speed of production8-12m/min
14.Thickness of colored steel0.2-0.8mm
15.Feeding width1000mm
16.Effectiv width840/900mm
15.Frame material300 H-steel



Machine Components
No.NameQTY
1Manual uncoiler1 set
2Feeding and leveling device1 set
3Roll forming system1 set
4Hydraulic punching and cutting1 set
5Product support frame1 set
6PLC Control System1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
The entire unit automation control system uses a highly integrated network to make the automation system more superior


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. FAQ(about our roll forming machine)

1Q: Are you a factory or trading company ?
1A: We are a factory.
2Q: Where is your factory located?
2A: Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome
to visit us !
3Q: What should I provide if I`d love to customized the machine?
3A: We need profile drawing, material informations: feeding width(1220mm?),
thickness(0.35-0.6mm?), yield strength of steel coil(G550Mpa?), voltage and your special
requirements.
4Q: What I should do if I just start to know roll forming machinery?
4A: Contact us immediately, we provide free consultant pre-sales service.
5Q: Can you make the machine according to my design or proto type?
5A: Yes. We have an professional designer for working out the most suitable design and
production plan for the machine that you are going to book with us
6Q: How can I trust you that machines pasted testing running before shipping?
6A: 1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
7Q: Do you provide installing and training overseas?
7A: Overseas machine install and worker training services are optional.
8Q: How is your after sales support?
8A: We provide technical support on line as well as overseas services by skillful technicians.
9Q: Guarantee period:
9A: Within one year since the date of finishing commissioning. The guarantee covers all
the electric, mechanic and hydraulic parts in the line except for the easy-worn parts

5. Roll forming machine pictures:

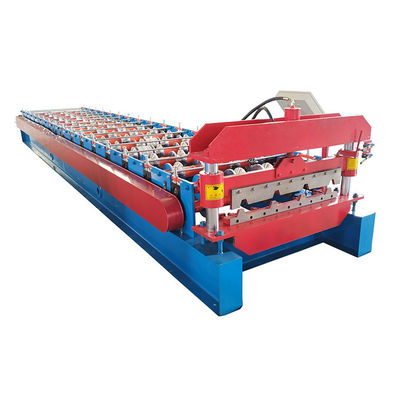

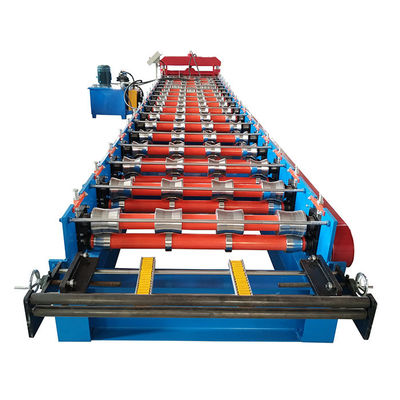

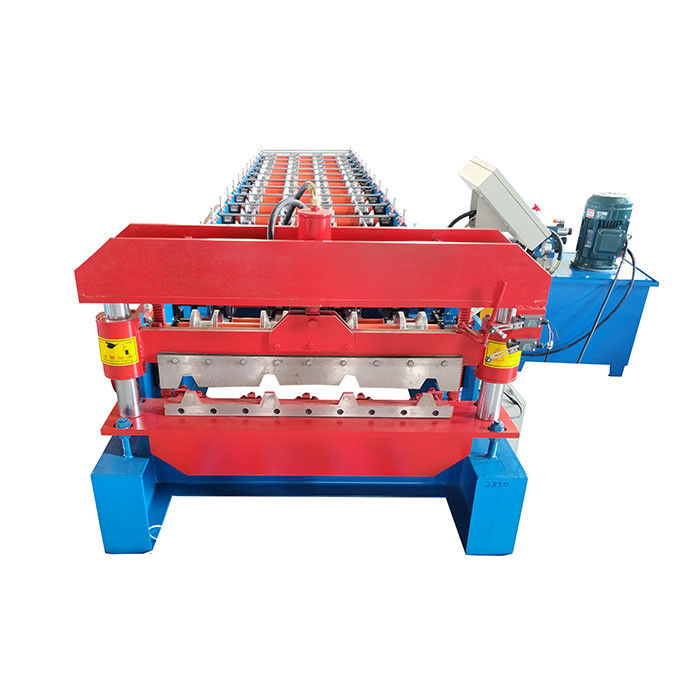

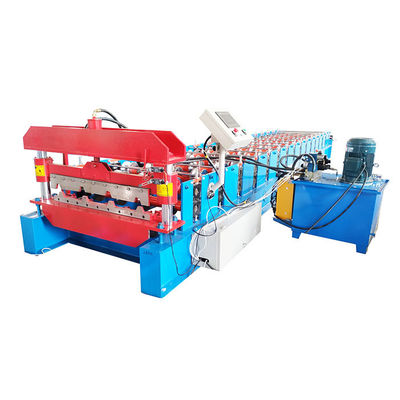

Chain Drive 20m/Min 0.2mm PLC Metal Roof Making Machine 0
