Payment & Shipping Terms:
|Machine Size:||8.6*1.2*1.5m||Machine Color:||Blue And Orange|
|Material:||Galvanized Coil||Usage:||Steel Roofing|
|Control System:||PLC Control||Cutting System:||Hydraulic Cutting System|
|Tile Type:||Colored Steel,double Layer Roll Forming Machine,galvanized Steel Sheet||After-sales Service Provided:||Video Technical Support,Online Support|
cold roll forming machine,
double deck roll forming machine
Double Layer Roof Automatic Tile Roll Making Forming Machine with customized requirments
1. The usage of the double layer roofing machine and instruction
The metal double layer roofing roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
We can also supply the customized machines.
2. Double different profile roofing double layer roll forming machine for steel tile making parameters
|1||Can Formed Material||GI,AI|
|3||Voltage||380V 60Hz 3Phase or as your requirement|
|4||Thickness of sheet (mm)||0.3-0.7mm|
|5||Material width(mm)||As your requirement|
|6||Cover Width of the sheet after formed||as your drawing|
|7||The size of the roll forming machine||5500mmx1200mmx1400mm|
|9||Diameter of shaft||40mm|
|10||Weight of the Machine||2200-2500KGS|
|11||Material of rollers||Cr12 steel quenched and chromed|
|12||Motor brand||Siemens or Guomao|
|13||PLC||Siemens or Delta or Mitsubushi|
|14||Total power (kw)||8kw|
|15||Power of hydraulic system||4kw|
|16||Power of main molding core||4kw|
|17||Transmission||Chain with gears|
|Hydraulic decoiler ( 5 Tons )||1 unit|
|Main Roll Forming Machine||1 unit|
|Cutting Device||1 unit|
|Electrical System with PLC Control||1 unit|
|Hydraulic station||2 unit|
|Auto stacker||1 unit|
3. Our company profiles
SHITONG specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roofing tiles, wall panels. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-type Steel Roll Forming Machine, Automatic Cutting and Punching Z-type roll forming machine, the production line of Glazed Tile Roll Forming Machine, Automatic Panel Machine, Guardrail Forming Machine, Shutter Door Forming Machine, which have the advanced technical level.
4. Our service
(1) Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine.
(2) If the buyer need overseas debug, we can also send technician to your factory, the customer should undertake all related cost including the accommodation and round-trip ticket of technician: 100 USD/day . The buyer should make sure the safety of technician.
5. FAQ (about our roll forming machine)
1:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
2:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
3:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.

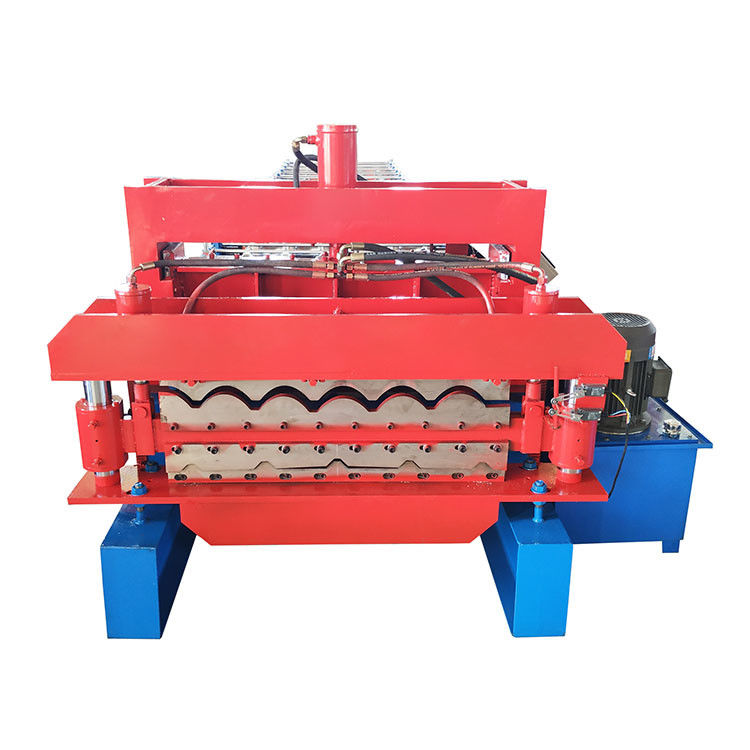

6.Roll forming machine pictures:
