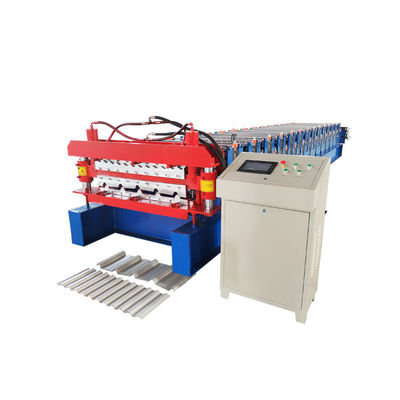

Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel

Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel
Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel

Large Image :  Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel

Product Details:
Place of Origin: cangzhou hebei china
Brand Name: ST
Certification: CE ISO
Model Number: 762-760
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact us
Packaging Details: the main machine is packed by plastic
Delivery Time: 40days after get first desposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets per month
Detailed Product Description
Color: Bule And Red Or As You Want Model: 762-760
Orginal Place: Cangzhou Productivity: 20-25m/min
Roller Material: Cr12 Shaft: 45#steel
High Light:

color steel roll forming machine

,

cold roll forming machine

Roofing Sheet Wall Panel Double Layer Roll Forming Machine IBR and Corrugated panel



Parameter

Raw material
material colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.2-0.8 mm
material expand width 940mm
Efficiency width 760mm/762mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm or as your requirement
main frame 300 H steel
forming steps

Up layer: 14rows

Down layer:15 stations

productivity 20-25m/min
hydraulic station power 5.5 KW
hydraulic pressure 10-12MPa
appearance size 8700mm*1550mm*1510mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating



Main pics:



Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel 0



Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel 1



Roofing Sheet Wall Panel Double Layer Roll Forming Machine Ibr And Corrugated Panel 2
