Customized Steel Tile Double Layer Roll Forming Machine With Long Life Time

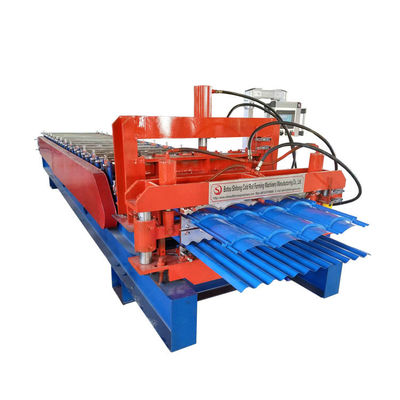

Large Image : Customized Steel Tile Double Layer Roll Forming Machine With Long Life Time

Product Details:

Place of Origin:	cangzhou hebei
Brand Name:	ST
Certification:	CE ISO9000
Model Number:	868-836

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	contact us
Packaging Details:	the main machine is nude
Delivery Time:	45days after first balance
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 stes per month

Contact Now

Detailed Product Description

Color:	Blue And Red Or As Your Requirements	Voltage:	380v 50hz 3 Phases Or As Your Requirments
Coil Width:	1000mm	Efficiency Width:	868/836mm
Rollers:	Up 13 Rollers Down 14 Rollers	Name:	Metal Roofing Sheet Making Machine
Tile Type:	Double Layer	Use:	Roof And Wall
Highlight:	color steel roll forming machine , cold roll forming machine

Customized double steel tile roll forming machine double deck roofing tile roll forming machine

Parameters:

Raw material
thickness of coil sheet	0.2-0.8 mm
material expand width	1000mm
Efficiency width	868/836mm
Machine details
roller material	high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material	high grade NO. 45 carbon wrought steel
cutting blade	Cr12 mould steel with quenched treatment
diameter of shaft	70mm or as your requirement
main frame	300 H steel
forming steps	up layer:13rollers down layer:14rollers
productivity	up layer:3-4m/min down layer:20-25m/min
hydraulic station power	5.5 KW
appearance size	6800mm1500mm1510mm
hydraulic oil	40# hydraulic oil
Electric tension	380V 50 Hz 3 Phase or as your requirement
Cut Mode	Hydraulic forming after cutting off
Cutter materia	Cr12 Heat Treatment

Our Equipment Advantage

1. Good service: we provide the technical support for whole life of our machines.

2. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

3. Easy operation:All machine cotrolling by PLC computer controlling systerm.

4. Reasonable price:We offer the best price in our industry.

Main pics:

Customized Steel Tile Double Layer Roll Forming Machine With Long Life Time 0
