Product Details:
Payment & Shipping Terms:
|
| Certification: | CE/ISO9001 | Name: | Gutter Making Machine |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Driving Method: | A/C Motor |
| Production Capacity: | 8-12 M/min | Cutting Blade Material: | Cr12MoV High Grade Steel |
| High Light: | gutter making machine,downspout roll forming machine |
||

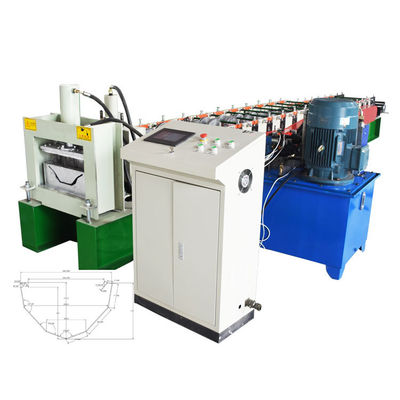

Automatic metal steel downspout panel gutter roll forming machine for waterproof construction
1. Usage And Introduction Of This Production Line
. Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine,etc,which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines.
Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines,etc. We also can supply steel coils,EPS sandwich panels,PU sandwich panels to suit diverse requirements of our global customers.
Applications of the Roll Forming Line:
The finished products are widely used in roofing construction, after installed the gutter, it will increase the lifetime of the roofing.
The components of the roll forming machine line includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| 1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| 2 | Thickness of coil sheet | 0.3-0.6mm |
| 3 | Feeding Coil width | 430mm |
| 4 | Effective width | 203.2mm |
| 5 | Under frame | 400H-beam |
| 6 | Diameter of Soild shaft | 70mm, high grade 45# steel,with keyway |
| 7 | Roller | 45# steel hard chrome coated 0.05-0.07mm |
| 8 | Thickness of middle plate | 18mm |
| 9 | Forming stations | 16 |
| 10 | Drive type | By chain(1.0 inch) link bearing model 6210 |
| 11 | Power of main motor | 3kw with Cycloidal reducer, Lichao, Shanghai |
| 12 | Power of pump station | 3kw, Lichao, Shanghai |
| 13 | Forming speed | About 15-20m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| 16 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |
We have high quality professional teams, skillful talents,strong technical force,strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
We have great confidence in the quality and precision of our products. Our customers feedback said that it is a great machine, no noise, clean, very advanced technology. And it also has the features of light structure and reasonable design.
4. After sales service of the roll forming machine production line
(1) Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine.
(2) If the buyer need overseas debug, we can also send technician to your factory, the customer should undertake all related cost including the accommodation and round-trip ticket of technician: 100 USD/day . The buyer should make sure the safety of technician.
5. Roll forming machine pictures:
6. FAQ
6.1: Do you have any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
6.2:How many workers operate this machine to manufacture?
A:Only 1-2 worker is enough, the machine line is full automatic with PLC control system. After you set the order, the machine can produce automatically.
6.3: Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
