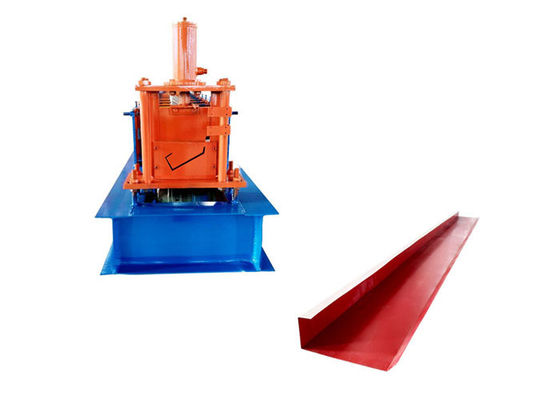

Chain Size 33mm Ridge Cap Roll Forming Machine / Flashing Making Machine 14 Roll Station

Chain Size 33mm Ridge Cap Roll Forming Machine / Flashing Making Machine 14 Roll Station
Chain Size 33mm Ridge Cap Roll Forming Machine / Flashing Making Machine 14 Roll Station
video play

Large Image :  Chain Size 33mm Ridge Cap Roll Forming Machine / Flashing Making Machine 14 Roll Station

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: ridge cap
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Delivery Time: 65 working days
Payment Terms: L/C,T/T
Supply Ability: 25 sets/month
Detailed Product Description
Material Thickness: 0.3-0.7mm Control System: PLC Control System
Voltage: 220V 50Hz 3Phases Or As Your Requirment Motor Brand: Lichao, Shanghai
Production Capacity: 10-15 M/min Cutting Blade Material: Cr12MoV High Grade Steel
High Light:

ridge making machine

,

roof tile production machines

Galvanized metal roof cap flashing roll forming machine / roof tile ridge cap flashing making machine



1. Usage And Introduction Of This Production Line



Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines,etc. We also can supply steel coils,EPS sandwich panels,PU sandwich panels to suit diverse requirements of our global customers.

this machine is popular in Middle East and was exported to many countries.

Our roll forming machine can produce different kinds of steel panel tiles for roof and wall. The tiles is mainly used in temporary building site, steel constructure workshop,and other public building with fast building speed. It has advantage of pretty appearance, durable using and so on.



The components of the roll forming machine line includes:

Hydraulic decoiler ( 5 Tons ) 1 unit
Main Roll Forming Machine 1 unit
Cutting Device 1 unit
Electrical System with PLC Control 1 unit
Hydraulic station 2 unit
Auto stacker 1 unit



2. The roll forming machine parameters

1 Name of commodity & specification ridge cap roll forming machine
2 Main motor power 4kw, 3 phase
3 Hydraulic motor power 3kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 400mm H-Beam
8 Backboard Thickness 18mm
9 Chain Size 33mm
10 Feeding Material color steel coils
11 Feeding Thickness 0.3-0.8mm
12 Feeding Width 600mm
13 Effective width 312mm
14 Productivity 4-8m/min
15 Roll Station 14
16 Roller Diameter 65mm
17 Roller material 45# steel
18 Cutter material Cr12 , quenched
19 Cr-Plating Size 0.05mm
20 Overall Size 7500×1000×1200mm
21 Total Weight 3T

3. Who we are and what we do

"The quality first, The prestige first" is the service aim of our company, we wish to customize the best machines for customers. So all stuff from SHITONG welcome anyone who are interested in our machines come to investigate and talk about cooperation.

SHITONG not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.



4. After sales service of the roll forming machine production line

(1) Once you paid the deposit, we will start the production as soon as possible. When the machine is finished, you can come to check the machine, we will arrange your accommodation and relative schedule. If you don't come, we can test the machine and send you test video. It's no problem.

(2) Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine.

(3) If the buyer need overseas debug, we can also send technician to your factory, the customer should undertake all related cost including the accommodation and round-trip ticket of technician: 100 USD/day . The buyer should make sure the safety of technician.

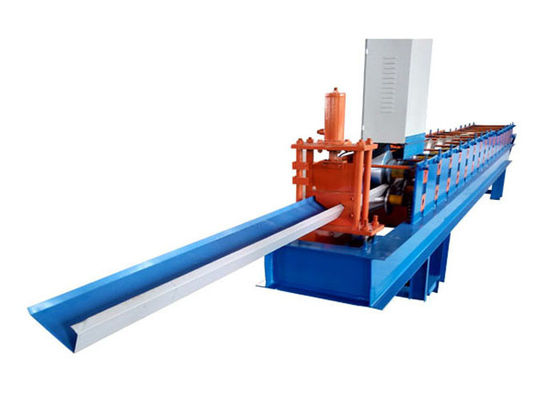

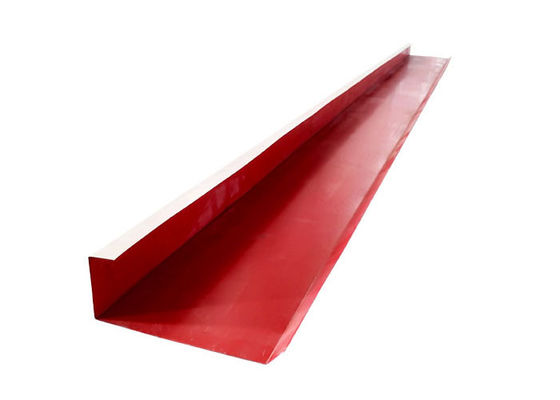

5. Roll forming machine pictures:

 Chain Size 33mm Ridge Cap Roll Forming Machine / Flashing Making Machine 14 Roll Station 0Chain Size 33mm Ridge Cap Roll Forming Machine / Flashing Making Machine 14 Roll Station 1Chain Size 33mm Ridge Cap Roll Forming Machine / Flashing Making Machine 14 Roll Station 2



6. FAQ

6.1:.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.

6.2:How is this machine's service life?

A:In the normal maintenance,the service life at least 8 years.

6.3: What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
