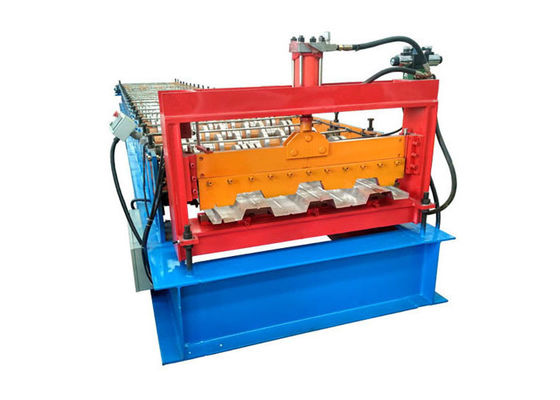

Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw

Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw
Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw

Large Image :  Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: floor deck
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Delivery Time: 60 working days
Payment Terms: L/C,T/T
Supply Ability: 16 sets/month
Detailed Product Description
Name: Floor Deck Roll Forming Machine Control System: PLC Control System
Voltage: 380V 50Hz 3phases Driving Method: A/C Motor
Production Capacity: 8-12 M/min Cutting Blade Material: Cr12MoV High Grade Steel
High Light:

metal deck roll forming machine

,

steel deck roll forming machine

Russian type or European style galvanized steel sheet floor decking panels roll forming machine



1. Usage And Introduction Of This Production Line



The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

We can also supply the customized machines.



Applications of Floor Decking Roll Forming Line:

The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.



The components of the roll forming machine line includes:

Hydraulic decoiler ( 5 Tons ) 1 unit
Main Roll Forming Machine 1 unit
Cutting Device 1 unit
Electrical System with PLC Control 1 unit
Hydraulic station 2 unit
Auto stacker 1 unit



2. The roll forming machine parameters

Suitable steel plate







Type Color steel plate
thickness 0.3-0.8mm
Feeding width 1250mm
Effective width 750mm
Production speed 8-12m/min
Roller stand 27 rows
Diameter 95mm
Main power 22kw
Pump power 15kw
Side panel of machine 20mm
Roller material Carbon Steel 45#
Blade material Cr12, quenched
Control system PLC control
Voltage 380V 50Hz 3phases(changeable as needs)
Main structure of the machine 450mm H-Beam

3. Who we are and what we do

We manufacture wide range products of metal sheet cold roll forming machine as follows: color steel roll forming machine, glazed tile roll forming machine, C/Z/U purlin machine for light steel structure building, floor deck machine, sandwich panel production line, fast guardrail forming machine, ridge cap forming machine and other automatic cold bending roll forming equipment. Our export team will listen to your request; the designed team will show you the best proposal according to your request, and we also have experts skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.



4. After sales service of the roll forming machine production line

1>. Free technical support and free accessories supply.

2>. Engineer available to service machinery overseas.

3>. One year warranty is provided.

4>. Long life technical guidance for free.

5>. We always offer technical support, quick response, all your inquire will be replied in 24 hours.



5. Roll forming machine pictures:

Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw 0Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw 1Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw 2



6. FAQ

6.1:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,

if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.

if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

6.2:How many workers operate this machine to manufacture?
A:Only 1-2 worker is enough, the machine line is full automatic with PLC control system. After you set the order, the machine can produce automatically.

6.3: Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
