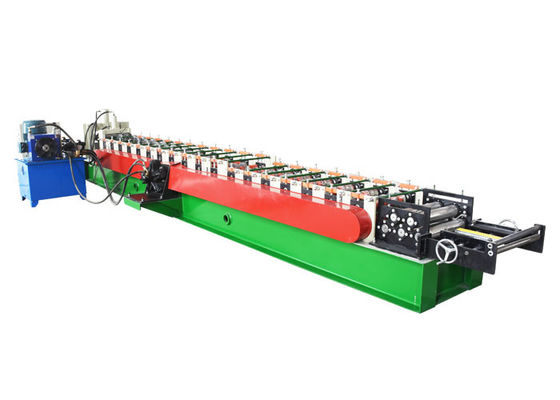

Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V

Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V
Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V

Large Image :  Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V

Product Details:
Place of Origin: CHINA
Brand Name: SHITONG
Certification: CE/ISO9001
Model Number: 400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 7500$-14500$
Packaging Details: the main machine is nude
Delivery Time: 30 days after the deposit
Payment Terms: L/C, T/T
Supply Ability: 40 sets/month
Detailed Product Description
Name: Gutter Making Machine Weight: 3.5T
Dimension(l*w*h): 7500*1700*1600Mm Voltage: 380V(as Customer's Request)
Control System: PLC(Touch Screen) Roller Material: High Grade NO.45 Forged Steel With 0.05mm Hard Chrome Plating
High Light:

gutter making machine

,

rain gutter machine

Color Steel Rain Gutter Water Gutter Roll Forming Making Machinery



Quick Details

Type:                                          Gutter Forming Machine

Production Capacity:                 15-20m/min

Power(W):                                  4+4KW

Certification:                               CE/ISO9001

Condition:                                   New

Place of Origin:                           Hebei, China (Mainland)

Model Number:                           Customized

Voltage:                                      380V 50Hz 3phases

Dimension(L*W*H):                    8500*1000*1200

Weight:                                       4.5T

Product name:                            Color Steel Rain Gutter Water Gutter Roll Forming Making Machinery

Under Frame:                             300H-beam

Forming Step:                             16 Steps

Roller material:                           45#steel Chrome Plated

Shaft material:                            45# Steel Outer Diameter: 75mm

Driving Motor:                             4KW with Shanghai Brand

Transmission Chain:                   1 inch with Hangzhou Brand

Cutting blade material:                Cr 12Mov processing

Usage:                                         Water gutter,rain gutter on roof and wall

Production Speed:                      15-20m/min

After-sales Service Provided:      Engineers available to service machinery overseas



MACHINE PARAMETERS

1 Suitable raw material PPGI/PPGL/GI/GL Steel Coils
2 Thickness of coil sheet 0.3-0.6mm
3 Feeding Coil width 430mm
4 Effective width 203.2mm
5 Under frame 400H-beam
6 Diameter of Soild shaft 70mm, high grade 45# steel,with keyway
7 Roller 45# steel hard chrome coated 0.05-0.07mm
8 Thickness of middle plate 18mm
9 Forming stations 16
10 Drive type By chain(1.0 inch) link bearing model 6210
11 Power of main motor 3kw with Cycloidal reducer, Lichao, Shanghai
12 Power of pump station 3kw, Lichao, Shanghai
13 Forming speed About 15-20m/min
14 Hydraulic cutting Controlled by PLC
15 PLC DELTA, TAIWAN / Mitsubishi, Japan
16 Material of cutting blade Cr12Mov, quenching 58-62℃



MACHINE PICTURES

Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V 0Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V 1Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V 2
