Product Details:
Payment & Shipping Terms:
|
| Name: | Metal Deck Roll Forming Machine | Certification: | CE/ISO9001 |
|---|---|---|---|
| Power(w): | 15 Kw | Raw Material: | Galvanized Sheet |
| Roller Material: | 45#steel Chrome Plated | Control System: | Automatic Customized( Standard Delta) |
| Highlight: | steel deck roll forming machine,floor tiles making machine |
||
Warranty: 2 Years
Type: Tile Forming Machine
Production Capacity: 8-12 meters per min
Certification: CE certificate
After-sales Service: Online support, Free spare parts, Field installation, commissioning and training,
Tile Type: Colored Steel
Use: Floor
Place of Origin: Hebei, China (Mainland)
Brand Name: SHITONG
Voltage: 380V/50Hz
Dimension(L*W*H): 15000mm*1200mm*1100mm
Weight: 12 tons
any color: as you like
Usage: Steel Construction
Raw material: Color Steel Sheet
Name: automatic roof tile making machine
Feeding width: as you need
Control system: PLC(imported Brand)
Cutting type: Hydralic Cutting
Thickness: 0.8-1.2mm
Product name: floor deck tile machine
Specification:
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 450mm H-Beam |
| Main Power | 18.5 kw |
| Pump Power | 15 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 10m/min |
| Roll Station | 24 stands |
| Roller Diameter | 95mm |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 720mm |
| Feeding Thickness | 0.3-0.8mm |
| Feeding Width | 1000mm |
| Backboard Thickness | 22mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 15000×1200×1100mm |
| Total Weight | 12T |

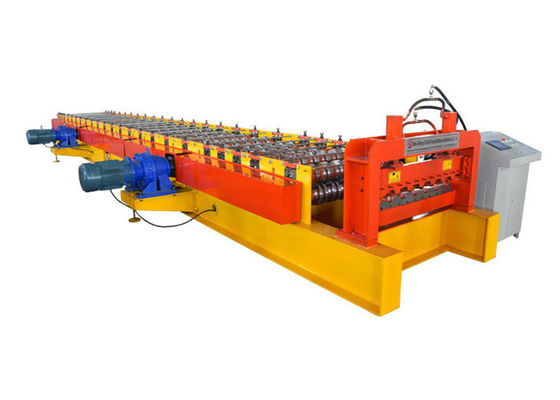

Machine pictures:
