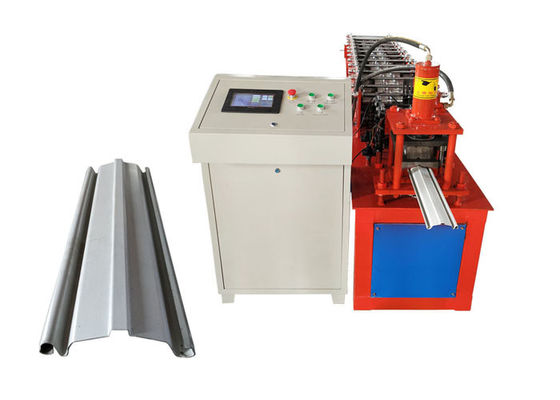

Embossing Type Roller Shutter Door Roll Forming Machine Material Thickness 0.8-1.2mm

Embossing Type Roller Shutter Door Roll Forming Machine Material Thickness 0.8-1.2mm
Embossing Type Roller Shutter Door Roll Forming Machine Material Thickness 0.8-1.2mm Embossing Type Roller Shutter Door Roll Forming Machine Material Thickness 0.8-1.2mm Embossing Type Roller Shutter Door Roll Forming Machine Material Thickness 0.8-1.2mm

Large Image :  Embossing Type Roller Shutter Door Roll Forming Machine Material Thickness 0.8-1.2mm

Product Details:
Place of Origin: China
Brand Name: ST
Certification: CE ISO
Model Number: 100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Cutting Type: Hydraulic Cutting Shaft Material: 45#steel
Production Capacity: 8-12m/min Weight: 2T
Cutter Material: Cr12 Material Thickness: 0.8-1.2mm
Highlight:

automatic rolling shutter machine

,

roller shutter door making machine

ce certificate embossing type Roller Shutter Door Roll Forming Machine

  • The Host Quality Requirements:
1.ColorAs you like
2.

Appearance size
(About)

5.0*0.8*1.3m
3.Rows of rollers12 rows
4.Rolling material45# steel,roller surfaces polishing, hard plating
5.Diameter of shaft￠50 mm
7.Total power3.7 KW
  • Turn/Cut/Console Quality Requirements
1.Productivity15-20m/min
2.Cut ModeHydraulic forming after cutting off
3.Cutter materialCr12 Heat Treatment
4.

Electronic control
system

PLC, Touch Screen, Encoding counter



Detailed Images

Manual decoiler:

Dimensions: 1700mm*1000mm*800mm

Width of feeding: 300mm
Capability: 3Ton
Range of expand(by manual): 420mm—510mm
Mode of expand &fight: inner expand &fight by manual

Way of feeding: manual


Forming section


Profile steel thickness between 0.8mm and 1.2mm
Main motor power:4kw, AC motor, side motor to save space (Brand: guomao which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:10stations +1 station of rectify
Roller material:SAE1045, hardness and chrome plated surface
Shaft diameter: ￠56mm material: SAE1045
Machine roll forming speed: 15m/min
Roll former has leveling bolts in the base for adjust the leveling
Machine base frame adopt H beam welding steel
In the main roll forming machine have 1 button for urgency stop if happen any malfunction.
Transmission: by chain, 1.0inch double line



Post cutting :

Machine adopt hydraulic cutting system, When cutting the machine will stop, after cutting will start the motion automatically.
Hydraulic power: 3KW
Hydraulic working pressure: 10Mpa
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12 with heat treatment 58-60°2 sets cutter
Length measuring: Automatic encoder length measuring, brand: Omron
Tolerance of length: 3000mm+/- 1.5mm

out table:


Frame: welding by tube
Size: about 2.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2units

Hydraulic station:

Hydraulic power: 3kW
Working pressure: 10Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)



Control carbinet:

1) Programmable setting of profile length and quantity
2) Automatic stopping of the equipment after completion of the cutting programme.
3) Operating system language: English and Chinese
4) Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5) PLC brand: Panasonic
6) Frequency converter brand: Yaskawa, quantity: 1
7) Touch screen: Taiwan Weinview
Embossing Type Roller Shutter Door Roll Forming Machine Material Thickness 0.8-1.2mm 0Embossing Type Roller Shutter Door Roll Forming Machine Material Thickness 0.8-1.2mm 1
