Product Details:
Payment & Shipping Terms:
|
| Machine Size:: | 5.6*1.2*1.5m | Machine Color: | Blue And Orange |
|---|---|---|---|
| Certificate: | GE, ISO | Working Speed: | 8-12m/min |
| Maching Weight: | 2000kg | Name: | Roof Panel Roll Forming Machine |
| High Light: | metal roof making machine,roof panel roll forming machine |
||
Manual control steel roofing sheet roll forming machine for low budget customer
1. Manual control steel roofing sheet roll forming machine for low budget customer
---- This machine is design for low budget customers, machine without auto control system, adopt a forward and backward switch.
---- A manual cutter before forming, to cut the sheet when customer want to stop production.
---- All rollers are heat treatment and with hard chorme plating.
---- One manual decoiler for feeding steel coils in to the machine.
2. Manual control steel roofing sheet roll forming machine for low budget customer parameters
| No | Item | Description |
| 1 | Coil | Width:925mm |
| 2 | Forming speed | 8-15 m/min (not including cutting time) |
| 3 | Roller Stations | 13stations |
| 4 | Material of Roller | 45# steel finish machining, plated hard |
| 5 | Material of Main Shaft | 45# steel finishing machining and then slack |
| 6 | Material of Shaft | 70 mm 45#steel forged |
| 7 | Driven Motor Power | 4KW |
| 8 | Dimension (L*W*H) | 5600mm*1050mm*1200mm |
| 9 | Material of Cutter | GCr12 |
| 10 | Driving Mode | single chain 1 inch |
| 11 | Material Thickness | 0.3-0.8mm |
| 12 | Power Supply | 380V, 60HZ, 3 PHASES |
| 13 | Cutting accuracy | ±1mm |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Our service(about our roll forming machine)
1. We are a factory with nearly 20 years experiences on Roll Forming Machines;
2. We have our own research and development team with strong ability to solve all kinds of problems;
3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
4. We have more than 20 technicians that can go abroad for the after-sale service;
5. We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us;
6. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines;
7. Our machines have reached the International Inspection Standards;
8. We have got the ISO9001:2008 Certificate and CE Certificate;
9. We are always waiting to serve you 7 days a week and 24 hours a day.

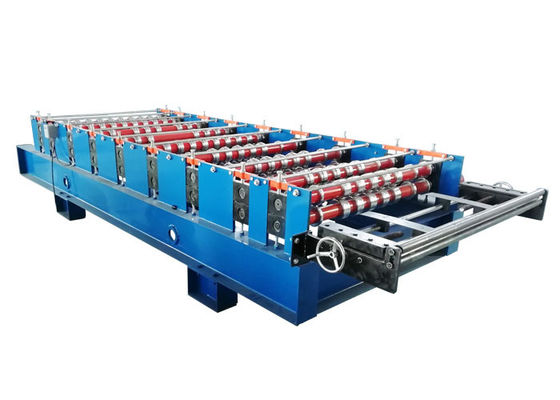

5. Roll forming machine pictures:
