Product Details:
Payment & Shipping Terms:
|
Feeding Material: | PPGI Or PPGL Coil | Working Speed: | 15-20m/min |
---|---|---|---|
Shaft Material: | High Grade 45# Steel | Pump Power: | 4KW LICHAO Shanghai |
Machine Type: | Driven By Chains | Control System: | Delta, Taiwan Or As Per Clients' Demand |
Application: | Roofing Construction | Name: | Roofing Sheet Roll Forming Machine |
Cutting Type: | Hydraulic Cutting | ||
Highlight: | metal roof making machine,roof panel roll forming machine |

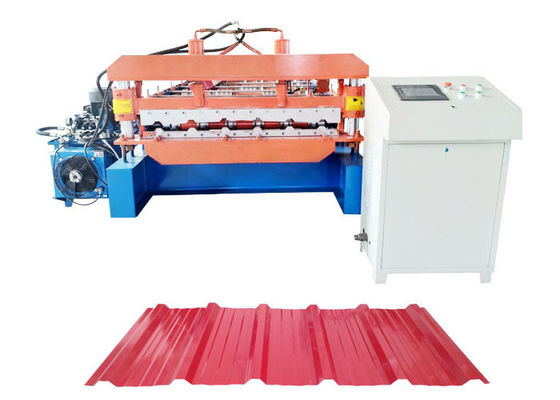

0.3 - 0.8 mm material thickness IBR sheet steel roofing matal roll forming machine
1. Know about our machine
The Advantages of Roll forming machine: solid shaft, PLC control, hydraulic system, fast production speed,long spanlife
Can design the machine as your drawing,machine color as you favor.
Delivery: Large capacity and Fast delivery,can accept third-party check before delivery
Perfect after-sales service: Our engineer can teach you how to install and operate the machine at your place,all machine parts are available.
The whole line including:uncoiler,roll forming machine,hydraulic station,hydraulic cutter,PLC control system, receiving table.
2. Specifications of the roll forming production line
Coil Material | Thickness | 0.3-0.8mm |
Coil width | Custom-made, 925mm or 940mm | |
Yield Strength | 250-350 Mpa | |
Material | PPGI, Color Steel, GI. | |
Decoiler / Uncoiler | Decoiler Type | Manual or Hydraulic or Auto Type |
Coil Width | Max. 1250mm | |
I.D | 508-610mm | |
O.D | Max. 1500mm | |
IBR Roof Panel Roll FormingMachine | Forming Stations | 18 Stations ( Depend on Profiles ) |
Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
Diameter of shaft | 76mm | |
Shaft material | High grade 45# steel | |
Drive type | Chain transmission | |
Forming speed | 0-15m/min | |
Main power | 5.5KW |
Cutting Device | Cutting type | Hydraulic cutting |
Cutting Die Material | Cr12Mov steel, HRC58-62 | |
Cutting power | 3KW | |
CuttingTolerance | 10m+/-1.5mm | |
Encoder | OMRON Brand | |
Electrical Control System | PLC | PANASONIC Brand |
Inverter | YASKAWA Brand | |
Touch screen | PANASONICE | |
Operation type | Touch screen & Button | |
Hydraulic Station | Hydraulic station | Famous Chinese brand |
Runout Table | Table type | Simple nonpower type |
Function | To support the finished panels |
3. The usage of the machine
This kind of machine is widely used in many kinds of industrial factory, workshop, civilian buildingsand so on , It has advantage of pretty appearance, durable using lower cost,high efficiency,reliable working and so on. Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufacture of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
4. What we can produce
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
5. Some machine pictures for your reference
6. Some details you may care about
1):How many workers operate this machine to manufacture?
A:Only 1-2 worker.
2):What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
3):Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
4): How can we be assured that you will deliver us quality machine with spare parts?
A:Customers to send the technical people to our factory for checking the quality. We can send the technicians to the buyer`s factory for the installation of the machine.
