|Machine Size::||5.6*1.2*1.5m||Thickness Of Matrial:||0.5-1mm|
|Forming Steps:||12 Steps||Driving Method:||1 " Chain|
|Voltage:||380V 60Hz (as Per Local Requirement)||Warranty:||12 Month|
stud and track roll forming machine,
ceiling channel roll forming machine
Steel U channel light steel keel roll forming machine with flying cutting system
1. Steel U channel light steel keel roll forming machine with flying cutting system
---- Machine adopt a servo motor flying cutting system, enhance the machine working speed vastly.
---- Hard chromium plating rollers ensure the roller's life and finally products quality.
---- Passivity decoiler feeding steel coil into machine smoothly.
---- High strength steel pipe weld the machine frame, let machine have a stable base when it working.
2. Steel U channel light steel keel roll forming machine with flying cutting system parameters
|Material||Colored steel sheet, galvanized steel sheet, aluminum sheet|
|Thickness of coil sheet||0.5-1 mm|
|Roller material||High grade NO. 45 forged steel with 0.05mm hard chrome plating|
|Shaft material||High grade NO. 45 carbon wrought steel|
|Cutting blade||Cr12 mould steel with quenched treatment|
|Diameter of shaft||70mm or as your requirement|
|Main frame||300 H steel|
|Forming steps||16 stations|
|Hydraulic station power||5.5 KW|
|Hydraulic oil||40# hydraulic oil|
|Electric tension||380V 50 Hz 3 Phase or as your requirement|
|Cut Mode||Hydraulic forming after cutting off|
|Cutter materia||Cr12 Heat Treatment|
|Electronic control system||PLC, Touch Screen, Encoding counter|
|Color||Blue, green or yellow or as your requirement|
|Rolling material||45# steel,roller surfaces polishing, hard plating|
|1||Manual uncoiler||1 set|
|2||Feeding and leveling device||1 set|
|3||Roll forming system||1 set|
|4||Hydraulic punching and cutting||1 set|
|5||Product support frame||1 set|
|6||PLC Control System||1 set|
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Our service
1. Warranty :One year,and we will provide technical support for whole life of the equipment
2. Delivery time: Within 30 days after deposit receipt your payment
3. Guarantee period: 12months free service
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things
1.We have professional technicians for loading
Guaranteed the goods load into container without any damage
2. Transportation : Machines need one 40 feet container to hold
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

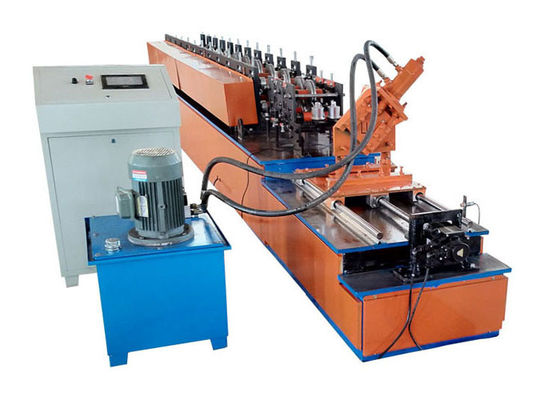

6. Roll forming machine pictures:
