PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine

PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine

PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine
PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine

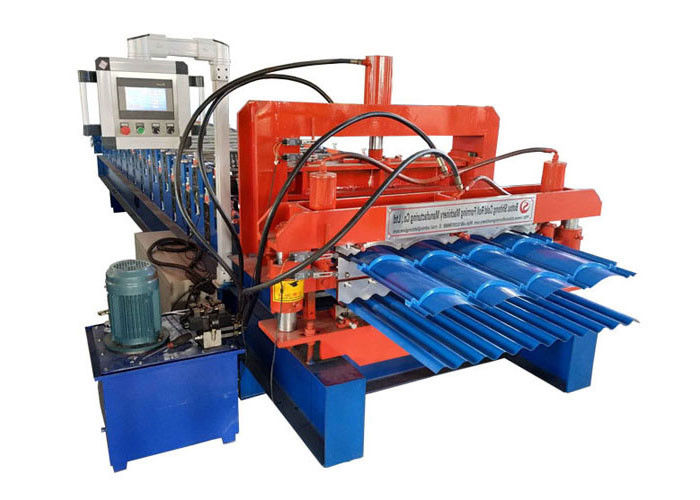

Large Image :  PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine

Product Details:
Place of Origin: HEBEI
Brand Name: ST
Certification: CE, ISO
Model Number: 960
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact the sales,she will give you the best offer
Packaging Details: the machine is nude
Delivery Time: 30-40 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month
Detailed Product Description
Material Expand Width: 1200mm Name: Glazed Tile Forming Machine
Voltage: 380V/50HZ3Phase (as Customer's Request) Certification: CE/ISO9001
Use: Wall After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

color steel roll forming machine

,

double deck roll forming machine

top quality metal trapezoidal roof tile and glazed tile double layer roll forming machine


1. Company information


BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.



2. Technical parameters:



Raw material

material spec colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.2-0.8 mm
material expand width 1250mm

Machine details

roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm
main frame 350 H steel
forming steps

Up layer:11 rows
Down layer:13rows

productivity 20-25m/min
hydraulic station power 5.5 KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
appearance size 6700mm*1500mm*1510mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirements



Device Configuration

No   number
(1) Manual decoiler 1 set
(2) Guiding device 1 set
(3) Main roll forming machine 1 set
(4) Hydraulic cutting device 1 set
(5) PLC electric control system 1 set
(6) Hydraulic driving system 1 set
(7) Special tools and parts 1 set
  • Payment Method

30% as deposit ,balance payment after inspection while before delivery.

  • Production Period

30 days after the 30% deposit.

  • Packing Method

Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.

  • After-sell Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

  • Installation

If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.

Position the machine in the buyer’s factory.

Prepare necessary electric wiring.

Prepare material of trial running.

Provide labors for assistance and installation during installation.


3. Machine picture
PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine 0PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine 1PLC Control Glazed Tile Forming Machine , Trapezoidal Sheet Roll Forming Machine 2



During production:
We can send the pictures to show you the schedule of your roll forming machines.
We will show you my blogger account for you to learn knowledge of roll forming machine if you would like
We will ask you what color of the roll forming machine body. Produce the machine under your suggestion

After-sale service:
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine

We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.
( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
