Galvanized and Aluminium metal Gutter roll forming Machine with customized designs

China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
I'm Online Chat Now

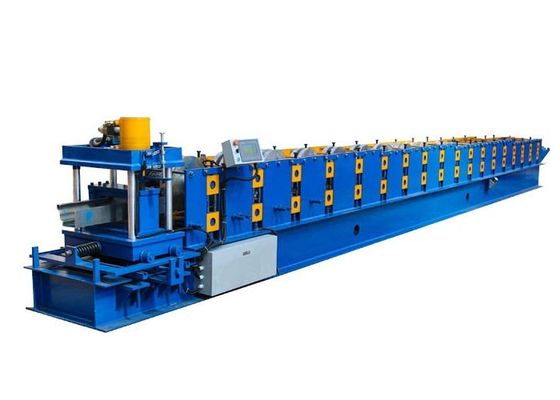

Galvanized and Aluminium metal Gutter roll forming Machine with customized designs

Galvanized and Aluminium metal Gutter roll forming Machine with customized designs
Galvanized and Aluminium metal Gutter roll forming Machine with customized designs Galvanized and Aluminium metal Gutter roll forming Machine with customized designs Galvanized and Aluminium metal Gutter roll forming Machine with customized designs

Large Image :  Galvanized and Aluminium metal Gutter roll forming Machine with customized designs

Product Details:
Place of Origin: CHINA
Brand Name: SHITONG MACHINERY
Certification: CE/ISO9001
Model Number: 410
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Contact us for more
Packaging Details: The machine is covered with plastic film if in FCL shipping; or we will put the machines and part into wooden boxes in LCL shipping.
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS PER MONTH
Detailed Product Description
Certification: CE/ISO9001 Weight: Depend On Design
Dimension(l*w*h): 7500*1700*1600Mm After-sales Service Provided: Engineers Available To Service Machinery Overseas
Use: Gutter,downpipe Roller Material: High Grade NO.45 Forged Steel With 0.05mm Hard Chrome Plating
Color: Customized Name: Seamless Aluminium Gutter Machines
Condition: New Voltage: 380V 50Hz 3phases
Warranty: 2 Years Cutting Blade Material: Cr12 Mov
High Light:

gutter making machine

,

downspout roll forming machine

Galvanized And Aluminium Metal Gutter Roll Forming Machine With Customized Designs



1. Brief of our company

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

"The quality first, The prestige first" is the service aim of our company, we wish to customize the best machines for customers. So all stuff from our company welcome anyone who are interested in our machines come to investigate and talk about cooperation.



2. quick details:

Warranty:                               1 Year

Type:                                      Gutter Forming Machine

Production Capacity:              0-18 m/min

Power(KW):                            5.5

Certification:                           CE/ISO9001

Tile Type:                                Metal Steel, Color plate, aluminium plate, galvanized plate

Voltage:                                  380V, 50HZ,3 phase

Dimension(L*W*H):                About 7m*1.8m*1.2m

Weight:                                   About 7-8 Tons

Name:                                    used seamless aluminium rainwater gutter roll forming machine for sale

Raw material:                         galvanized metal steel,PPGI,PI,CR,steel coil,or equivalent

Thickness(mm):                     0.3-0.8

Cutting system:                      Hydraulic die cutting



3. Technical Specification

Item

Parameters



According to buyer's requirements

Raw material

Type

PPGI, PI, CR , Steel Coil, or equivalent

Thickness(mm)

0.3-0.8

Width of the feeding material

According to buyer's final confirmed profile drawing

Yield strength(Mpa)

230-550

Forming speed(m/min)

0-18

Roller material

45 # sheet with chrome coated

Roller driven type

Chain transmission

Control System

PLC (Panasonic) as list in the note

Operation type

Touch screen + button

Hydraulic system pressure( MPa )

12

Hydraulic motor power ( KW )

5.5

Main motor power(KW)

2 * 5.5

Shaft Material and DIA

65mm, material is 45 # forge steel

Electric Source

380V, 50HZ,3 phase
According to customer’s require

Roller stations

16

Dimension(L*W*H)

Forming Section about 7m*1.8m*1.2m



4. Features of the roll forming machine production line

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency



5. FAQ

5.1. What will you do if the machine is broken?
A: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

5.2. What can you do if the machine broken?
A:Our machine's warranty period is 1 year,

if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.

if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

5.3. How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation of the machine.



6. Machine pictures:

Galvanized and Aluminium metal Gutter roll forming Machine with customized designs 0Galvanized and Aluminium metal Gutter roll forming Machine with customized designs 1Galvanized and Aluminium metal Gutter roll forming Machine with customized designs 2
