400 H Beam Floor Deck Roll Forming Machine Roller Material High Grade GCr15

Name: 400 H Beam Floor Deck Roll Forming Machine Roller Material High Grade GCr15
Brand: shitong
SKU: ST 925
Rating: 5 (191 reviews)

Large Image : 400 H Beam Floor Deck Roll Forming Machine Roller Material High Grade GCr15

Product Details:

Place of Origin:	CHINA
Brand Name:	shitong
Certification:	CE/ISO9001
Model Number:	ST 925

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	contact me to get the lowest price
Packaging Details:	the main machine is nude
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Voltage:	3 Phase And 50 Hz Or At Buyer's Request	Weight:	About 13 Tons
Dimension(lwh):	900015001500MM	Name:	Floor Deck Roll Forming Machine
Certification:	CE/ISO9001	Power(w):	15 Kw
Raw Material:	Galvanized Steel	Usage:	Floor With Concrete
High Light:	metal deck roll forming machine , steel deck roll forming machine

New Product Metal Decking Roll Forming Machine Galvanized Steel Deck Floor Tile Making Machine

Quick Details

Type: Floor Deck Forming Machine

Production Capacity: 15-20m/min

Power(W): 11KW + 11 KW +5.5KW

Certification: CE/ISO9001

Tile Type: Floor deck

Place of Origin: Hebei, China (Mainland)

Model Number: 925

Size: 12.5M*1.6M*1.5MM

Weight: ABOUT 12500KG

UNDER FRAME: 400 H-BEAM

SIDEWALL THICKNESS: 18mm

Roller Station: 25 Steps

Roller Material: High grade GCr15

SHAFT MATERIAL: 45# FORGED STEEL

SCREW&BOLTS: 8.8 GALVANIZED

Hydraulic Cutting System: Automatic Length to Cut

PLC Control System: AUTO DELTA PLC PROGRAM

LENGTH TOLERANCE: 10M±1MM

Machine parameter:

Model Number	925
Sample & Drawing
Forming Roller Stations	25
Driving Motor Power	11KW
Pump Motor Power	11KW
Cutting Type	Hydraulic Cutting
Shaft Information	80MM SOLID
Automatic PLC Brand	AUTO DELTA PLC PROGRAM
HIM Touch-screen	HIM TOUCH-WIN OPERATION
Sidewall Structure	16mm
Under Frame	400 H-beam
LENGTH TOLERANCE	10M±1MM

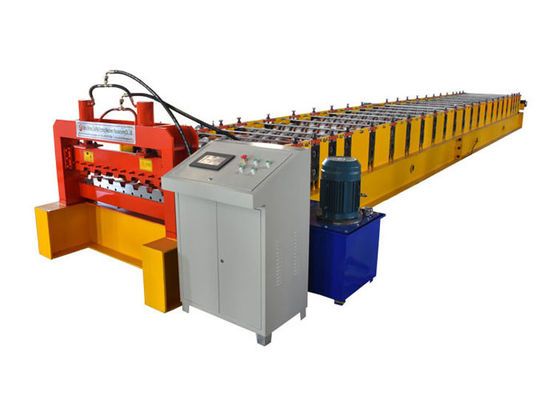

machine pictures:

400 H Beam Floor Deck Roll Forming Machine Roller Material High Grade GCr15 1

400 H Beam Floor Deck Roll Forming Machine Roller Material High Grade GCr15 3
