Product Details:
Payment & Shipping Terms:
|
| Machine Size:: | 6.5*1.4*1.3m | Thickness Of Matrial: | 0.7-1.2 Mm |
|---|---|---|---|
| Forming Steps: | 16 Steps | Middle Plate: | 16mm Steel Board |
| Cutter Material: | Cr12 | Usage: | Door Frame |
| Application: | Door Frame Production | Condition: | New |
| Power: | 380V 50Hz 3Phase Or Customized | Weight: | 3.5T |
Steel Sheet Door Frame Metal Cold Roll Forming Making Machine With Hole Punching Function
1. Steel door frame roll forming machine application
Steel Door Frame Roll Forming Machine is cold-rolled into various wave-shaped pressed plates. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structures. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.
2. Steel door frame roll forming machine by customized parameters
|
No.
|
Item
|
Description
|
|
1
|
Coil width
|
174mm
|
|
2
|
Rolling speed
|
12-15m/min(not include cutting & punching time)
|
|
3
|
Rolling thickness
|
0.2-2.0mm
|
|
4
|
Control system
|
PLC (Panasonic) as list in the note
|
|
5
|
Un Coiler
|
5T hydraulic decoiler
|
|
6
|
Leveling
|
Three rollers four
|
|
7
|
Punching
|
4 sets
|
|
8
|
Shaft Material and DIA
|
￠70mm, material is 45# forge steel
|
|
9
|
Roller stations
|
About 20 stations (according the final design)
|
|
10
|
Roller material
|
Gcr15, HRC55-60 surface coated with chrome
|
|
11
|
Post cutting
|
Hydraulic cutting after roll forming
|
|
12
|
Material Of Cutting
|
Cr12Mov quenching 58-62℃
|
|
13
|
Maim Motor Power
|
11kw
|
|
14
|
Hydraulic Station Power
|
5.5kw
|
|
15
|
Hydraulic Pressure
|
12-16Mpa adjustable
|
|
16
|
Sturcture Of The Stations
|
Wire-electrode cutting
|
|
17
|
Electric Source
|
380V, 50HZ,3 phase
According to customer's require |
|
18
|
Way Of Drive
|
By chain
|
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. After-sales service
Since we built your line, we have a comprehensive understanding of its design, and our engineering experts can analyze equipment and processes to determine how to strengthen performance. As new technologies and solutions are introduced to the market, we ensure that your production benefits accordingly, so you can stay on target in a changing, competitive marketplace.
4. FAQ
4.1. Can one machine only produce one size?
Not exactly, it depends on the machine.
4.2. Do you have after-sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
4.3. What can you do if the machine is broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
4.4. Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport.
4.5. You are a trade company or factory?
We are a Manufacturer.
4.6. Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.
4.7. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
5. Our company introduction
Shitong machinery is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar panel Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Botou county, Cangzhou city, near Beijing City with superior geographic position and convenient transportation.
We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality, through design, and installation.

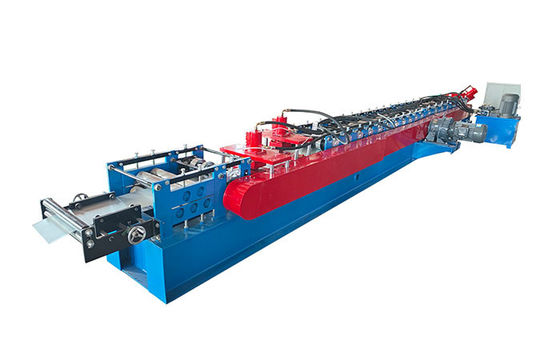

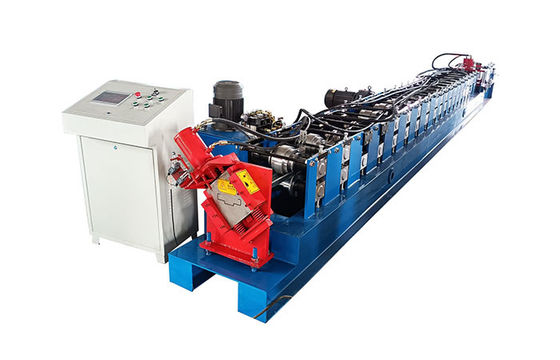

6. Roll forming machine pictures
