| Working Speed: | 15-20m/min | Shaft Material: | High Grade 45# Steel |
|---|---|---|---|
| Shaft Diameter: | 70 Mm | Drive Motor: | Hydraulic Motor |
| Usage: | Roofing Tile Production | Machine Frame: | Welded By 350H Steel |
| Cutting Mode: | Hydraulic Cutting | Driven Type: | Drive By Chains |
| Feeding Material: | Steel Coils | Application: | Wall And Roof Panel |
| Cutting Method: | Hydraulic Cutting Device |

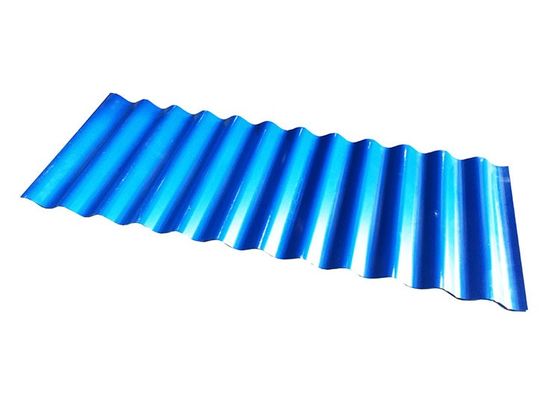

Popular Metal Roof Corrugated Sheet Roll Forming Machine For Zinc Sheet Production
1. Brief of the machine
The metal sheet cold roll forming of us has characters of high speed, high production, good performance, low labor and save cost. All the above characters are the best selections for producing the metal sheet cold roll form products.
The forming rollers is the key of roll forming machine. We use CAD to design and manufacture the rollers. After CNC lathe, the forming rollers will be harden by vacuum heat treatment and finished the profiles again. These processes make the more accurate forming rollers ,avoid the deformation during heat treatment and ensure the rollers’ preciseness and wear-resisting ability.
2. Features of the roll forming machine production line
a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency
3. Specifications of the roll forming production line
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.3-0.7mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 5500mmx1200mmx1400mm |
| 8 | Speed | 15-20m/min |
| 9 | Diameter of shaft | 70mm |
| 10 | Weight of the Machine | 3500KGS |
| 11 | Material of rollers | Cr12 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 8kw |
| 15 | Power of hydraulic system | 4kw |
| 16 | Power of main molding core | 4kw |
| 17 | Transmission | By Chain |
4. Service aim of our company
"The quality first, The prestige first" is the service aim of our company, we wish to customize the best machines for customers. So all stuff from SHITONG welcome anyone who are interested in our machines come to investigate and talk about cooperation.
SHITONG not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
5. FAQ
1): What can you do if the machine broken?
A: Our machine's warranty period is 1 year, if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
If after warranty period, we can negotiate to solve the problems, and we supply the technical support for the whole life of the equipment.
2): Do you have any other service?
A: We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
3): How many workers operate this machine to manufacture?
A: Only 1-2 worker is enough, the machine line is full automatic with PLC control system. After you set the order, the machine can produce automatically.
4): What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.

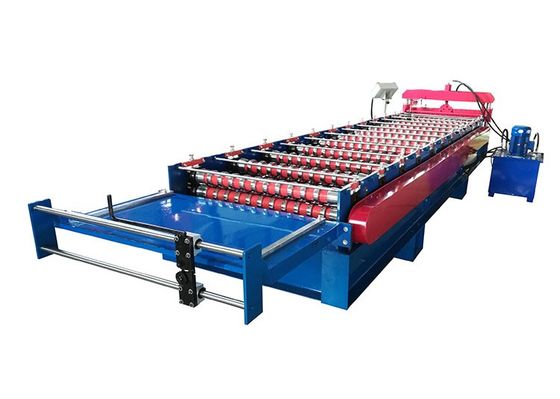

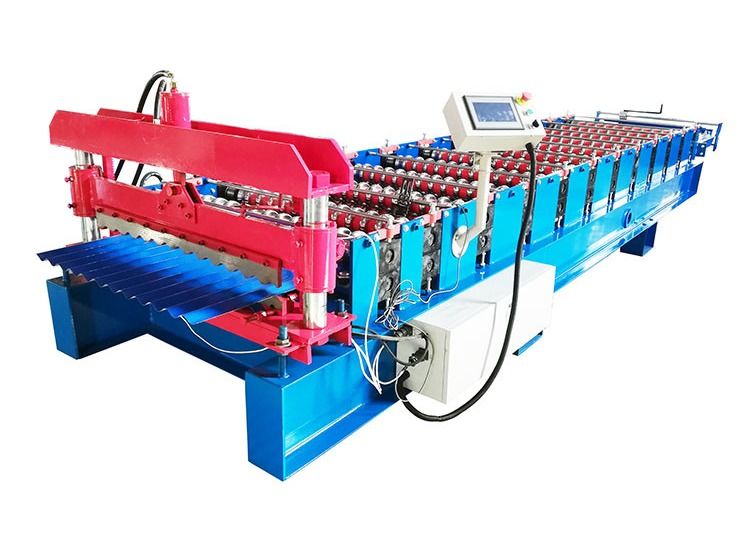

6. Machine pictures for your reference
