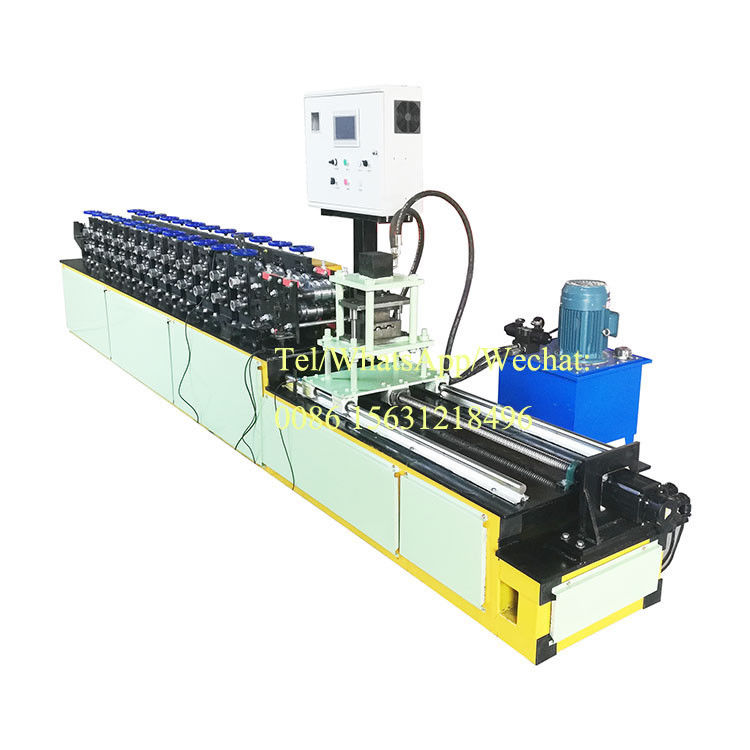

Metal Roof Panel Light Steel Keel Roll Forming Machine For Cd Ud Stud Track Profile

Metal Roof Panel Light Steel Keel Roll Forming Machine For Cd Ud Stud Track Profile
Metal Roof Panel Light Steel Keel Roll Forming Machine For Cd Ud Stud Track Profile Metal Roof Panel Light Steel Keel Roll Forming Machine For Cd Ud Stud Track Profile

Large Image :  Metal Roof Panel Light Steel Keel Roll Forming Machine For Cd Ud Stud Track Profile

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: steel frame-M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Delivery Time: 52 working days
Payment Terms: L/C,T/T
Supply Ability: 26 sets/month
Detailed Product Description
Certification: CE/ISO9001 Tile Type: M Type Frame
Machine Weight: 3.5 Tons Motor Brand: Lichao, Shanghai
Operate Style: Automatic Cutting Blade: Cr12MoV
Cutting Blade Material: Cr 12 High Grade Steel Structure: Column Type
High Light:

ceiling channel roll forming machine

,

keel making machine



new metal roof panel light steel keel cd ud stud track profile roll forming machine



1. Usage And Introduction Of This Production Line



This type of forming machine line includes various kinds of roof panel forming machines, wall panel forming machines, and lining plate forming machines , C Z purlin roll forming machines, guard rail roll forming machines, metal deck roll forming machines, guide rail roll forming machines etc. It has received 3 patents of utility model and is widely used in steel construction enclosure. We can provide roll forming equipment in various profile shapes and configurations to satisfy your specific requirements.



uncoiler 1set
coil sheet guiding device 1set
main roll forming system 1set
punching device 1set
cutting device 1set
Hydraulic station 1set
PLC control system 1set
support table 1set



2. The roll forming machine parameters


Feeding material PPGI / GI plate
Frame type steel board welded
Width of the plate 1250mm
Thickness of the plate 0.3 - 0.8mm
Dimensions 7000mm*1500mm*1400mm
Diameter of the shaft Φ75mm
Roller station 18rows , 20rows
Productivity 2 - 3m/min, 8 - 12m/min
Drive mode A / C motor
Motor power to drive the machine 5.5 + 4 kw
All nut and bolt 8.8 grade
Voltage 380V 50Hz 3phase or as per requirement
Weight 7600kgs
Material of the cutting head Gr12 , heat treatment HRC58-60
Machine frame 350 H steel
Side board thickness 16mm

3. Our machine advantages

1. Low cost, light weight but high strength, short building period, and re-cycle use

2. Save material , no waste.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range),help to save material

5. Optional Punch hole at any position of purlin web side and flange side



Some relative terms we can provide:

1) Roll former has leveling bolts in the base for adjust the leveling
2) Machine base frame adopt H beam welding steel
3) In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
4) Machine adopt new station to make machine more strong
5) To avoid accidents,all of drive part adopt protect cover
6) Color of machine: Blue and yellow (or base on customer request)



4. FAQ (about our roll forming machine)

4.1:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.



4.2:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,

if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.

if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.



4.3:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.

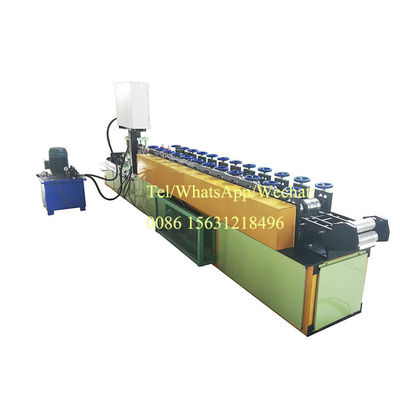

5. Roll forming machine pictures:

Metal Roof Panel Light Steel Keel Roll Forming Machine For Cd Ud Stud Track Profile 0Metal Roof Panel Light Steel Keel Roll Forming Machine For Cd Ud Stud Track Profile 1Metal Roof Panel Light Steel Keel Roll Forming Machine For Cd Ud Stud Track Profile 2
