Product Details:
Payment & Shipping Terms:
|
| Name: | Steel Roof Roll Forming Machine | Certification: | CE/ISO9001 |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Client's Request |
| Raw Material: | Color Steel Sheet | Cutting Blade Material: | CR12 |
| Highlight: | color steel roll forming machine,cold roll forming machine |
||

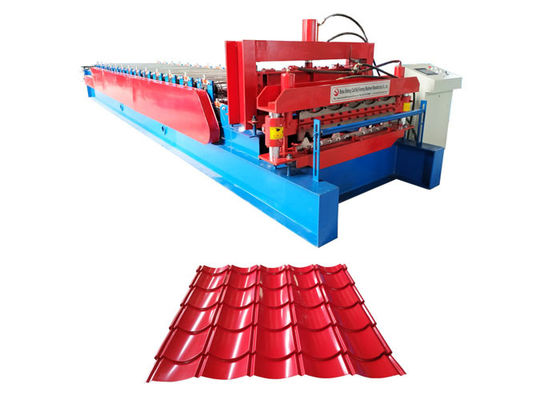

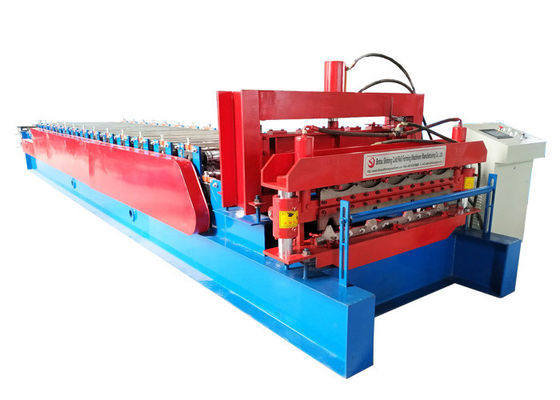

steel roof and wall panel making double layer roll forming machine
1. Company information
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. is a comprehensive manufacturing and trading company. We have three factories. One factory produces steel coils,corrugated steel sheets and sandwich panels, one factory produces roll forming machines, and one factory produces steel structures. We have completed technique,production,quality control, sales and service department to gurantee every customer's order to be finished perfertly.
High quality with favorable price and good service is our advantages. Besides our own products, we also provide OEM service and accept customized orders as well. We will provide diversified designs and professional services.
Our products have been exported to Uganda, Bolivia, Russia, Slovenia, Turkmenistan...ect. Customers are all satisfied with our products and service.
2. Technical parameters:
|
Raw material |
|
| material spec | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.2-0.8 mm |
| material expand width | 1250mm |
|
Machine details |
|
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm |
| main frame | 350 H steel |
| forming steps |
Up layer:11 rows |
| productivity | 20-25m/min |
| hydraulic station power | 5.5 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 6700mm*1500mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
Device Configuration
| No | number | |
| (1) | Manual decoiler | 1 set |
| (2) | Guiding device | 1 set |
| (3) | Main roll forming machine | 1 set |
| (4) | Hydraulic cutting device | 1 set |
| (5) | PLC electric control system | 1 set |
| (6) | Hydraulic driving system | 1 set |
| (7) | Special tools and parts | 1 set |
30% as deposit ,balance payment after inspection while before delivery.
30 days after the 30% deposit.
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
package and Warranty:
- 1. Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2. This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3. All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
- 4. When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
FAQ
1. Q: What details of the machine you should get from me.
A: I will confirm all details with you, such as the voltage in your city.
2. Q: I am new in this field. How could i understand the machine very well
A: Why not contact me. I promise you that you will be professional after you get from me. It is true thing.
3. Q: I receive a lot of quotations, they are big range, How could i choose?
A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.
