Product Details:
Payment & Shipping Terms:
|
| Machine Size:: | 7.6*1.4*1.5m | Thickness Of Matrial: | 0.3-0.8 Mm |
|---|---|---|---|
| Forming Steps: | 15 Steps/14 Steps | Drive System: | Hydraulic Motor Drive |
| Name: | Metal Roof Making Machine | Usage: | Steel Roofing And Wall Panel |
| High Light: | 15 steps roof sheet rolling machine,PPGL roof sheet rolling machine,Hydraulic Driven sheet metal roofing machine |
||

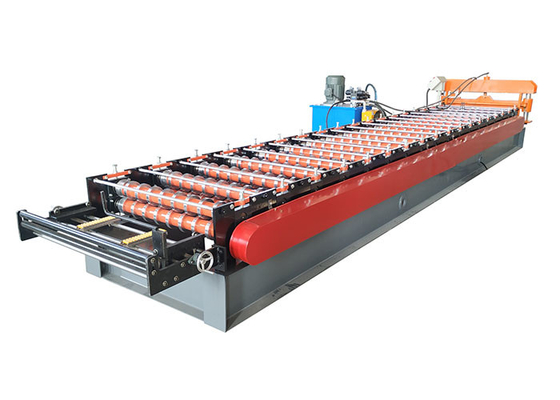

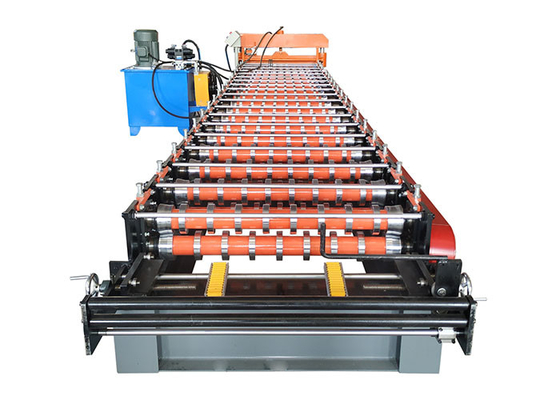

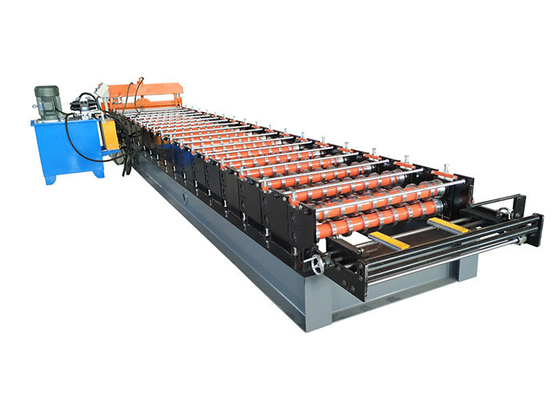

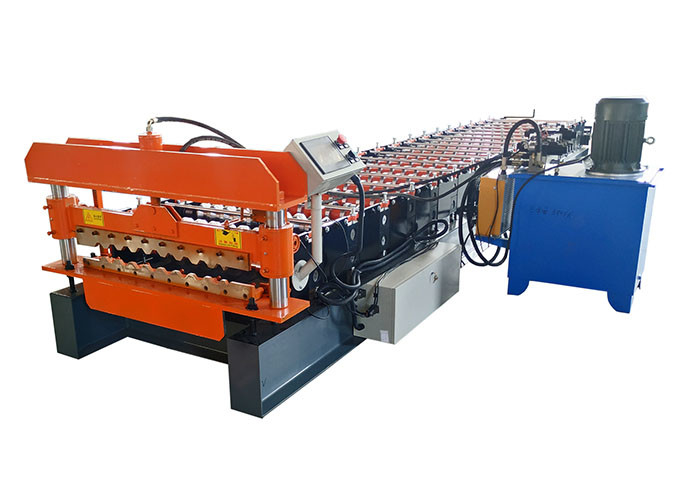

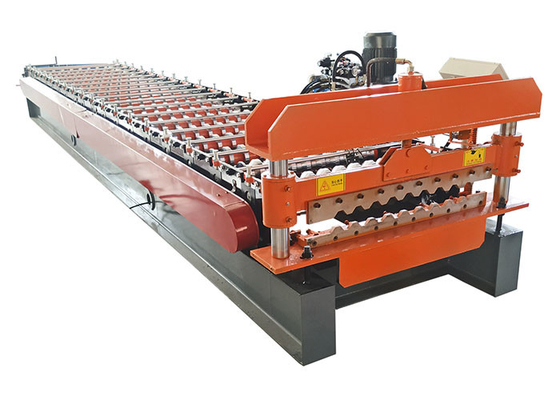

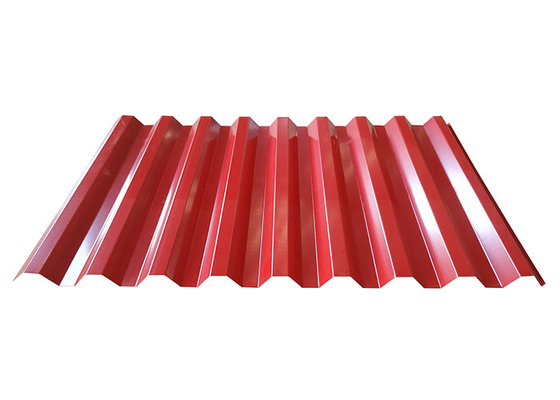

Roofing panel Trapezoidal Box Roof Profile Sheet Roll Forming Making Machine
Machine is design for color steel roof sheet roll forming,the machine working speed is about 15m per minute,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table,total power is 8kw.
| Machine components | Technical parameters |
| Decoiler | 5 or 10T,manual or hydraulic powered. |
|
Main forming machine
|
16 stations forming rollers,chain drive.shaft diameter 70mm |
| Hydraulic pump | 4kw |
| Control box | Delta PLC and frequency. |
| Run out table | Manual operate ,Height adjustable |
| Tool box |
For operate tool and spare parts. |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
Size and Weight Information
| Name | Decoiler | Machine | Control box | Pump | Runout table | others |
| Size | 1*1*1.2m | 6.5*1.45*1.2m | 1*0.6*0.5m | 1.1*0.8*0.9 | 3*1.2*0.45 | |
| Weight | 200kg | 3500kg | 30kg | 40kg | 80kg |
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price,
payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our
warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost
including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the
first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per
day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange
accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- Any certification:
- Yes, we have CE TUV BV certification.
