BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD
Home ProductsMetal Shearing Machine

Electric Automatic Sheet Metal Shearing Machine Cutting Flatting 0.1-1mm

China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
My requirements are completely, I know that. But you provide enough patience and technic suggestion. Finally I got the best solution and good quality machine from you. Thank you very much!

—— Thomas

The machine is good, I bought it three years, still in a good working situation.If any body ask me how about SHITONG MACHINERY, I will recommend them to buy the machine from SHITONG MACHINERY.

—— Otto Mashaba

This is my second time buy machine from this company, because my besiness is expanded in the past three years. The first machine I bought from SHITONG is good, so when I need new machines, I decide buy from them again.

—— Frances Badical

Thanks for support me on my machine project! Wish your business booming and have a bright future!

—— Mahammed

I'm Online Chat Now

Electric Automatic Sheet Metal Shearing Machine Cutting Flatting 0.1-1mm

Electric Automatic Sheet Metal Shearing Machine Cutting Flatting 0.1-1mm
Electric Automatic Sheet Metal Shearing Machine Cutting Flatting 0.1-1mm Electric Automatic Sheet Metal Shearing Machine Cutting Flatting 0.1-1mm Electric Automatic Sheet Metal Shearing Machine Cutting Flatting 0.1-1mm

Large Image :  Electric Automatic Sheet Metal Shearing Machine Cutting Flatting 0.1-1mm

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Detailed Product Description
Name: Light Steel Keel Roll Forming Machine Thickness Of Matrial: 0.1-1mm
Voltage: 380V 60Hz (as Per Local Requirement) Warranty: 12 Month
Color: As Required
High Light:

1mm sheet metal shearing machine

,

electric sheet metal shearing machine

,

0.1mm sheet metal shearing machine

China Factory Electric Automatic Sheet Metal Shearing Cutting And Flatting Machine



China factory  electric automatic sheet metal shearing machine

Essential details
Slider Stroke (mm):
0 mm

Automatic Level:
Manual
Throat Depth (mm):
0 mm
Machine Type:
Torsion Bar, Press Brake
Length of Working Table (mm):
2000 mm
Width of Working Table (mm):
100 mm
Dimension:
2400x800x1550mm
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
BYFAN
Material / Metal Processed:
Stainless steel, Carbon steel, Aluminum
Automation:
Manual
Extra Services:
End Forming
Year:
2021
Weight (KG):
500
Motor Power (kw):
0 kw
Key Selling Points:
Energy saving
Warranty:
2 years, 2 Years
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, HVAC DUCTWORK
Showroom Location:
Egypt, Canada, Turkey, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Bearing
After-sales Service Provided:
Engineers available to service machinery overseas
Raw Material:
Sheet / Plate Rolling
Model:
WS1.5 *2000
operation:
by hand
dimension:
2700*650*1100
weight:
560kg
thickness:
0.3-1.5mm































































































Shearing machine description
1,Electric shearing machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450
N/mm2, non-metallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make
only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.
2,Electric shearing machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing
3, Electric shearing machine base is steel- welding , the structure is compact, good rigidity.
4, Track of blade movement is precision casting copper,less friction
5, Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth
smooth
6, Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal
surface.
7, Electric shearing machine uses completely independent closed gear box transmission system, move directly connection, compact
structure, gear have good lubrication, low noise and long life.
8, Electric shearing machine equipped with pneumatic clutch device.
Specification
item
value
Max. Cutting Width (mm)
2500
Max. Cutting Thickness (mm)
3mm
Automatic Level
Semi-automatic
Blade Length (mm)
8mm
Throat Depth (mm)
6mm
Condition
New
Power (kW)
5.5kW
Weight (KG)
1000KG
Place of Origin
China

Anhui
Warranty
1 Year

Free spare parts, Field maintenance and repair service, Online support, Video technical support
Key Selling Points
Automatic
After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries
Advertising Company
Local Service Location
None
Showroom Location
None
Marketing Type
New Product 2023
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Other, Engine, Gearbox
Cutting thickness
1~6mm
cutting length
1000~3000mm
Color
Customizable
Machine type
electric shearing machine
Cutting material
stainless steelmetal steel
Cutting mode
Machanical
Application
Sheet Metal Industry
Blade
Optional
Name
electric shears
Type
Q11-3*2500 sheet metal electric automatic shearing machine

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Busniess terms





Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 1 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 1 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.

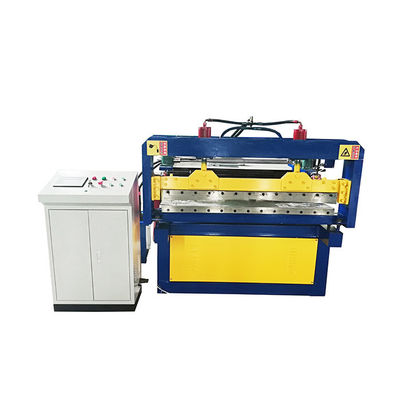

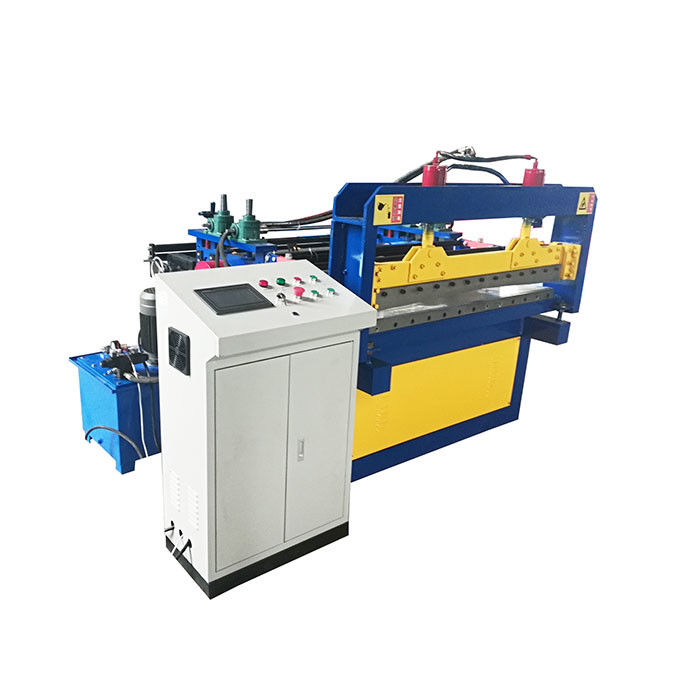

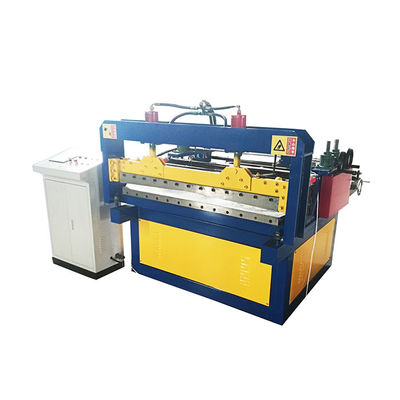

Machine pictures:
