980mm Trapezoid Wave Tile Corraugated 5.5kw Sheet Metal Roll Forming Machines

China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
I'm Online Chat Now

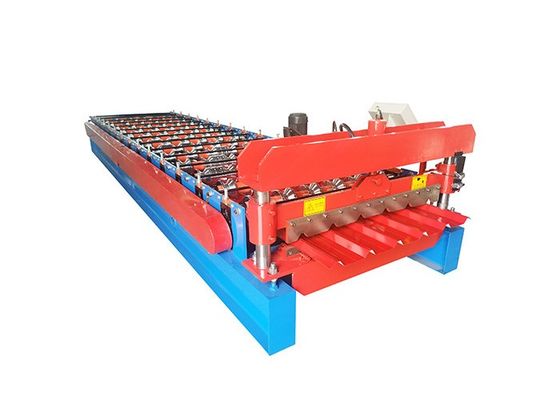

980mm Trapezoid Wave Tile Corraugated 5.5kw Sheet Metal Roll Forming Machines

980mm Trapezoid Wave Tile Corraugated 5.5kw Sheet Metal Roll Forming Machines
980mm Trapezoid Wave Tile Corraugated 5.5kw Sheet Metal Roll Forming Machines

Large Image :  980mm Trapezoid Wave Tile Corraugated 5.5kw Sheet Metal Roll Forming Machines

Product Details:
Place of Origin: HEBEI
Brand Name: ST
Certification: CE, ISO
Model Number: 980
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: the machine is nude
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month
Detailed Product Description
Thickness: 0.3mm-0.8mm Coil Width: 1200mm
Shaft Diameter: 70 Mm Roller Material: High Grade NO. 45 Forged Steel With 0.05mm Hard Chrome Plating
Shaft Material: High Grade NO. 45 Carbon Wrought Steel Tile Type: Colored Glaze Steel
Name: Sheet Metal Roll Forming Machines Weight: 3.5T
Speed: 20m/min Color: Blue
High Light:

5.5kw corrugated roll former for tile

,

980mm sheet metal roll forming machines

,

5.5kw sheet metal roll forming machines

High Quality Maquinas Para Calaminas Trapezoid Wave Roof Tile Corraugated Roof Sheet Roll Forming Machineacture



Article No. Item Name Specification
1 Width of feeding material 1000 mm coil sheet
2 Thickness of feeding material 0.3-0.8 mm coil sheet
3 Roller station 13 stations
4 Shaft Diameter 75 mm
5 Productivity 8-15 m/min
6 Rollers' material 45# steel with 0.05 mm chrome
7 Shaft material 45# steel with 0.05 mm chrome
8 Weight 6.5 tons
9 length 5.5 m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 5 tons
13 Motor 5.5 kw
14 Driving way Chain transmission
15 Chain size 1 inch
16 Cutting system Hydraulic cutter




Our Services
1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.



FAQ
1. Q: How to visit our company:

A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station

(1hour), then we can pick up you to factory(40min).

Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west

station(4.5 hours), then we can pick up you to factory(40min).

2. Q: What should I provide if I want to customized machine?

A: U need provide profile drawing, material, thickness, voltage and your special requirements.

3. Q: What is the Warranty?

A: Within 12 mounts, all technicals are ready to serve you at any time.

4. Q: What can you do if the machine broken?

A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send

new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.

5. Q: If need technician to workshop to debug and teach, how to do?

A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.



980mm Trapezoid Wave Tile Corraugated 5.5kw Sheet Metal Roll Forming Machines 0

Processing Flow Diagram of Machine:

980mm Trapezoid Wave Tile Corraugated 5.5kw Sheet Metal Roll Forming Machines 1
