Product Details:
Payment & Shipping Terms:
|
| Voltage: | 380V | Name: | Double Layer Roll Forming Machine |
|---|---|---|---|
| After-sales Service Provided: | Online Support | Warranty: | 1 Year |
| Control System: | PLC | Power(w): | 5.5 Kw |
| Diameter Of Shafts: | 70mm | Color: | Blue |
| Thickness: | 0.-0.8mm | Speed: | 15-20 M/min |
| High Light: | 380V double layer roll forming machine,panel double layer roll forming machine,double layer roofing sheet roll forming machine |
||

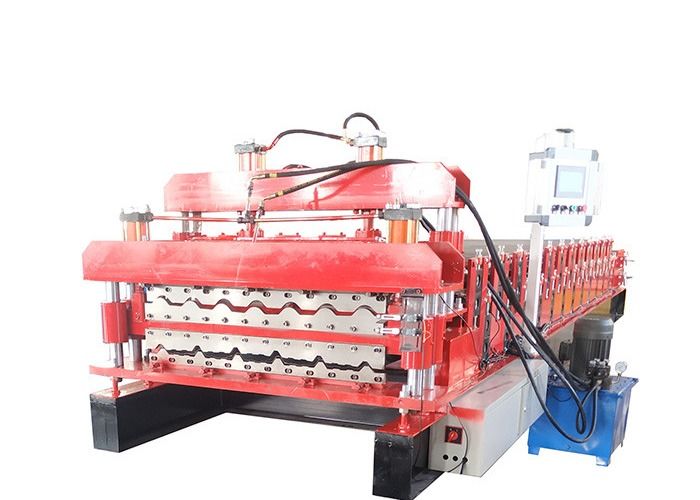

Double layer steel roof and wall panel making roll forming machine
Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
Technical parameters:
1. Machine Specifications
| Technical Parameters (some depend on the final design) | ||
| 1 | Style | Bolivia glazed roof tile double layer roof sheet roll forming machine |
| 2 | Machine dimension | 7500*1600*1650mm |
| 3 | Total wight | 5800kgs |
| 4 | Forming steps | Up layer :11rows Down layer :13rows |
| 5 | Forming speed | Glazed design :1.5-3.0m/min Wave design:10-15m/min |
| 6 | Hydraulic station power(Kw) | 4kw |
| 7 | Diameter of shaft | 70mm |
| 8 | Hydraulic pressure | 18-20 MPa |
| 9 | Electric condition(Voltage ) | 380V/3Phase/ 50HZ (or based on customer's need ,for example :220V 440V 415V or 2Phase 60HZ ) |
| 10 | Suitable to process | Color steel plate(G330 or G350 ) galvanized steel coil |
| 11 | Manual uncoiler max capacity | 5000kgs |
| 12 | Control system | PLC |
| 13 | Raw material thickness | 0.3-0.8mm |
| 14 | Effective width | 800mm and 836mm |
| 15 | Material width | 1000mm and 1000mm |
| 16 | Main motor | 5.5Kw |
| 17 | Material of the cutting blade | Cr 12 quenched treatment 58℃-62℃ |
| 18 |
Main Shaft Material
|
45# steel with finish turning |
| 19 | Roller materials | 45# Forging Steel with Chromium Plate |
| 20 | Machine Under Frame | 400 H beams and side wall 18mm |
Spare Parts
1.glazed roof tile double layer roof sheet roll forming machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 35 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3)Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
We are Gold supplier with BV assessment and CE certificate.
4)Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period ,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address we have rich experience in transport.
