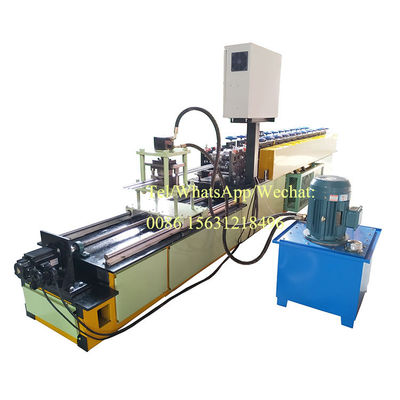

C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall

C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall

C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall
C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall

Large Image :  C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: steel frame-M

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Delivery Time: 52 working days
Payment Terms: L/C,T/T
Supply Ability: 26 sets/month
Detailed Product Description
Certification: CE/ISO9001 Tile Type: M Type Frame
Machine Weight: 3.5 Tons Motor Brand: Lichao, Shanghai
Operate Style: Automatic Cutting Blade: Cr12MoV
Cutting Blade Material: Cr 12 High Grade Steel Structure: Column Type
High Light:

ceiling channel roll forming machine

,

keel making machine

Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine



1. Usage And Introduction Of This Production Line



Our roll forming machine can produce different kinds of steel panel products for roof and wall. The tiles is mainly used in temporary building site, steel constructure workshop,and other public building with fast building speed. It has advantage of pretty appearance, durable using and so on.

The metal sheet cold roll forming of us has characters of high spped ,high production, good performance, low labor and save cost. All the above characters are the best selections for producing the metal sheet cold roll form products.



uncoiler 1set
coil sheet guiding device 1set
main roll forming system 1set
punching device 1set
cutting device 1set
Hydraulic station 1set
PLC control system 1set
support table 1set



2. The roll forming machine parameters


No. Metal stud roll forming machine
1 Operating Voltage 380V,50Hz,3 phases or customized
2 power 4kw
3 productivity 25m/min
4 Material type Strip steel
5 Roller station 12 forming steps+4 leveling steps
6 Thickness to process 0.3~1.5mm
7 Main Frame 300H-beam steel
8 Roller material Gcr15 steel,quenched
9 Side-wall thickness 20mm
10 Bearing brand Harbin
11 Chain 1.3 inches
12 Frequency converter Equipped

3. Our machine advantages

1. Low cost, light weight but high strength, short building period, and re-cycle use

2. Save material , no waste.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range),help to save material

5. Optional Punch hole at any position of purlin web side and flange side



Some relative terms we can provide:

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.



4. FAQ (about our roll forming machine)

1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.



5. Roll forming machine pictures:

C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall 0C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall 1C Shape Light Steel Keel Roll Forming Machine For Furred Ceil Studs Track / Drywall 2
