Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife

Good quality Roofing Sheet Roll Forming Machine for sales
I'm Online Chat Now

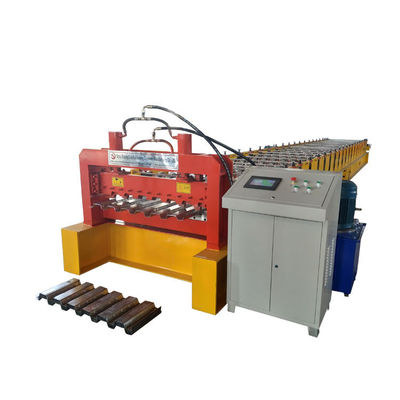

Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife

China Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife supplier
Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife supplier Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife supplier Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife supplier

Large Image :  Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife

Product Details:

Place of Origin: HEBEI CHINA
Brand Name: ST
Certification: CE ISO9000
Model Number: 914

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: contact us
Packaging Details: main machine is nude
Delivery Time: 38days after get desposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets per month
Contact Now
Detailed Product Description
Name: Floor Deck Roll Forming Machine Rollers: 23 Rollers
Size: 10.6*1.5*1.51m Roller Material: 45#steel
Coil Width: 914mm Diameter Of Shaft: 90mm

steel profile floor deck roll forming machine corrugated metal floor deck roll forming machine



Panels produced by this machine are mainly used as the floor decking in Russia. It has features of high wave, high strength, high degree automatically producing, lower cost and so on.

This panel is set up with concrete, which has good adhesiveness. This not only can save steel moulding plate, but also can decrease the load capacity of floor decking. Therefore, steel quantity of the whole project is decreased and can save money surely.



Parameters:

No. Item
1. Processing Material PPGI,GI
2. Feeding Width As drawing
3. Processing Thickness(mm) 1.2-1.5mm or as your Customized
4. Material of Rollers GC15
5. Diameter of Shaft 90mm or as your Customized
6. Forming Speed 12-15m/min or as your Customized
7. Roller Driven 1.2 inch double Chain
8. Cutting Model Hydraulic Cutting
9. Length Measurement Encoder
10. Control Style PLC
11. Operation Model Touch screen
12. Total Power 22+5.5KW
13. Voltage 380V 50HZ 3Phase
14. Dimension(mm) About 10600*1500*1550MM
15. Weight About 12.5T
16. Stations 23 Stations
17. Installation Dimension About 18m*2m
18. Workers 2



Processing technique and deployment:

Uncoiler-Feeding platform-molding core-Molding shearing mechanism-Hydraulic station-Computer control cabinet-Counter

Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife

Main pics:

Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife

Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife

Steel Profile Corrugated Metal Floor Deck Machine With 23 Rollers , Longlife
