Metal Roof Profile Roll Forming Machine Galvanized Ridge Tile Capping With Iron Sheet

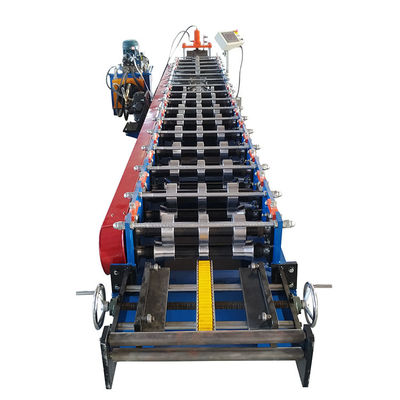

Large Image : Metal Roof Profile Roll Forming Machine Galvanized Ridge Tile Capping With Iron Sheet

Product Details:

Place of Origin:	cangzhou hebei
Brand Name:	ST
Certification:	CE ISO9000
Model Number:	400

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	contact us
Packaging Details:	electrical part is packed by plastic, main machine is nude
Delivery Time:	38days after get desposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	28 sets per month

Contact Now

Detailed Product Description

Model:	400	Certification:	CE ISO9000
Rollers:	16rollers	Size:	7.71.21.31m
Diameter Of Shaft:	70mm	Roller Material:	45#steel
Highlight:	ridge making machine , ridge forming machine

metal roof ridge cap roof profile ridge tile capping roll forming making machine with iron sheet

Parameters:

Suitable material	Color steel sheet , galvanized steel sheet,
Main motor power	5.5KW with Cycloidal reducer
Hydraulic station power	7.5KW
Hydraulic oil	40#
Thickness	0.3-0.8mm
Diameter	Φ70mm
Material expand width	400mm
Electric tension	380V 3phase 50HZ
Material of roller	High grade 45# forged steel
Rolling galvanization thickness	0.05mm
Processing speed	10-15m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 quenched

Component of ridge cap making machine

COMPONENT FOR china made roof profile tile machine
Name		Quantity	Units
Decoiler		1	Set
Main Machine	Feeding device	1	Set
	Roll forming system	1	Set
	Cut Equipment	1	Set
	Hydraulic system	1	Set
Electric control system		1	Set
Supporter		1	Set

Main pics:

Metal Roof Profile Roll Forming Machine Galvanized Ridge Tile Capping With Iron Sheet 0

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

Metal Roof Profile Roll Forming Machine Galvanized Ridge Tile Capping With Iron Sheet 1

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Metal Roof Profile Roll Forming Machine Galvanized Ridge Tile Capping With Iron Sheet 2
