Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet

Good quality Roofing Sheet Roll Forming Machine for sales
I'm Online Chat Now

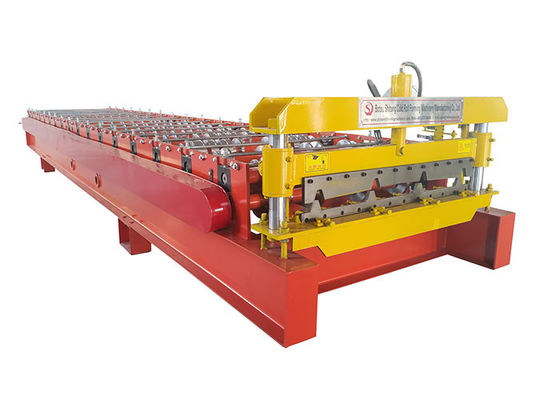

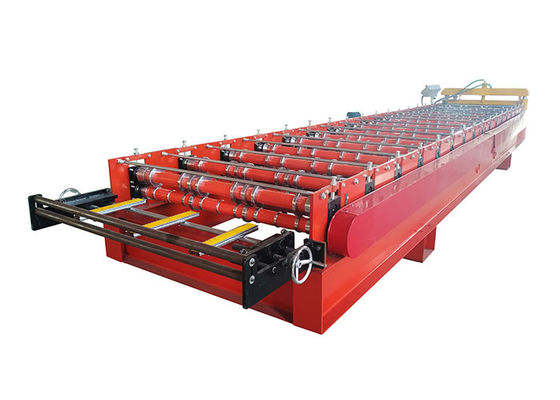

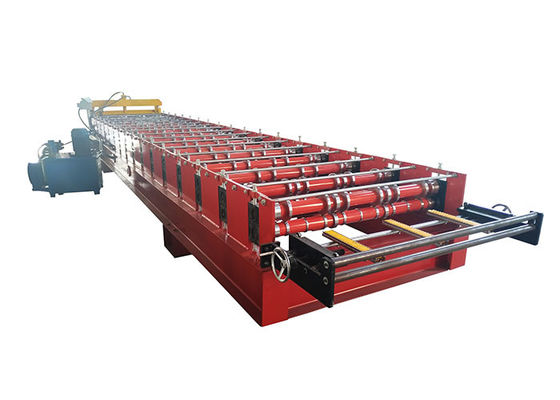

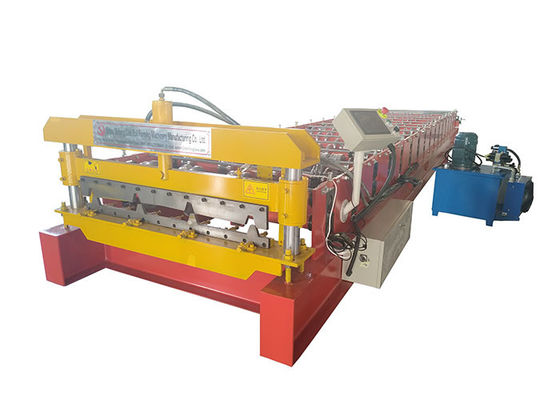

Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet

China Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet supplier
Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet supplier Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet supplier Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet supplier Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet supplier

Large Image :  Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Machine Size:: 7.6*1.4*1.5m Thickness Of Matrial: 0.3-0.8 Mm
Forming Steps: 17 Steps Drive System: Hydraulic Motor Drive
Name: Metal Roof Making Machine Usage: Steel Roofing



Customized PPGI Roof Making Machine With High Corrugated Rib Roof Sheet



1. Customized PPGI Roof Making Machine With High Corrugated Rib Roof Sheet

--- The roofing sheet profile is provide by customer, the high of corrugated rib is big.

--- Long forming steps ensure the finally profile will be perfectly.

--- The hydraulic driveing motor can let machine working speed to be 20 meters/minute.

--- Easy operate system only need one - two worker to operate this machine.



2. Customized PPGI Roof Making Machine With High Corrugated Rib Roof Sheet parameters

parameters
Production Capacity 20-25 m/min
Power(W) 4+4KW
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 7600*800*1500mm
Weight  2.5 T
Suitable material Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material 1200 mm
Rows of rollers 17 rows
Material of roller High grade 45# steel(plated chrome on surface)
Thickness of raw material 0.3-0.8 mm
Certification ISO
Tile Type Tile Cutting Machine



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Comapny advantage:

In Botou, we start the pressure roll forming machine export business from 2008.

As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.

Provide best price,good quality and fast delivery.

 Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet
5. FAQ

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.


Customized PPGI Roof Making Machine For High Corrugated Rib Roof Sheet
