Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine

China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certifications
I'm Online Chat Now

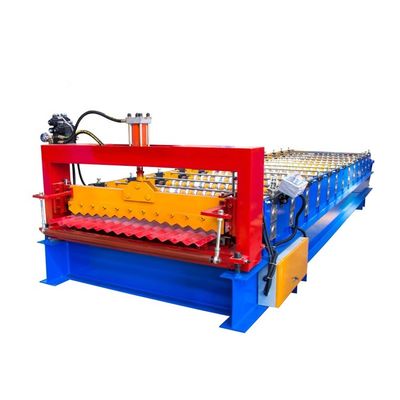

Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine

Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine
Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine

Large Image :  Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 18-76-1064

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Delivery Time: 48 working days
Payment Terms: L/C,T/T
Supply Ability: 12 sets/month
Detailed Product Description
Use: Wall And Roof Name: Corrugated Steel Panel Roll Forming Machine
Main Frame: 300H Steel Speed: 20-25m/min Or As You Want
Certification: CE And ISO Diameter Of Shaft: 70mm
Cutting Blade Material: Cr12 Color: Bule And Red Or As You Want
Model Type: 18-76-1064-1250
High Light:

corrugated metal roofing machine

,

corrugated roof sheet machine

single layer corrugated color steel roll forming machine corrugated steel panel roll forming machine





♦ Main details:



1 Suitable to process Color steel plate, galvanized sheet, aluminum coils, etc.
2 Width of the feeding material 1250mm
3 Roller station 13 rows
4 The thickness of the feeding material 0.3-0.8mm
5 Productivity 20-25m/min
6 Rollers' material 45# steel
7 Diameter of shaft 70mm
8 Voltage 380V 50Hz 3phases
9 Wall thickness of the main forming machine 14mm steel plate
10 Main forming machine body 300 mm H steel
11 Motor power 4+4kw
12 Size 6500*1500*1400mm
13 Weight About 3.2 tons

♦ Components

No. Name Unit Qty
1 Decoiler set 1
2 The main machine for roll forming set 1
3 Control system set 1
4 Hydraulic system set 1
5 Automatic cutting set 1
6 Output table set 1



comnpany introduction:



Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine 0



Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.



main pics of machine

Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine 1

Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine 2

Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine 3

Single Layer Corrugated Roll Forming Machine , Corrugated Steel Panel Roll Forming Machine 4
