Product Details:
Payment & Shipping Terms:
|
| Voltage: | 380V 50Hz 3phases | Weight: | 2 Tons |
|---|---|---|---|
| Warranty: | 24 Months | Color: | Client's Request |

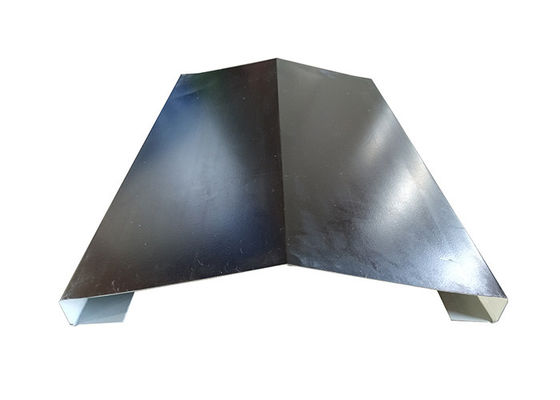

| Name: | Color Coated Sheet Making Machine | Use: | Produce Ridge Cap Tile |
| High Light: | ridge making machine,ridge forming machine |
||

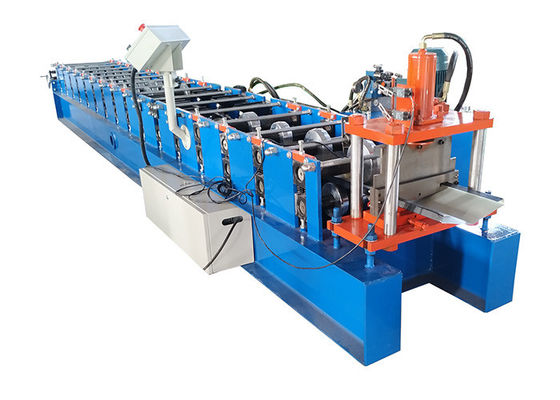

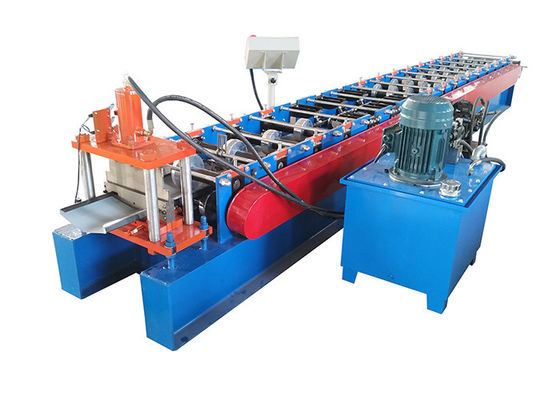

color coated ppgi use roof valley design Ridge Cap Roll Forming Machine
Our Metal Ridge Cap Machine Technical Parameter
| No. | Item | parameter |
| 1 | Machine size | 6930*1310*1750mm |
| 2 | Machine weight | 2500kg |
| 3 | Machine power | 5.5kw |
| 4 | Hydraulic engine | 2.2kw |
| 5 | Roll speed | 6M/Min |
| 6 | Roll stations | 14 |
| 7 | Roller material | GCr15 |
| 8 | Effective width | 200mm |
| 9 | Feeding width | 300mm |
| 10 | Voltage | 380V 50Hz 3PH/Customized |
| 11 | Material thickness | 0.35-0.65mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
Orther type of roof ridge:(We can design and produce the machine as your request,welcome to send us your sepecification or drawing ,we will give you a satisfied solution. )
Roofing Sheet Roll Forming Machine has following advantages
Q1. What's your delivery time?
A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.
Q2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.
Q4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
