Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized

China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
I'm Online Chat Now

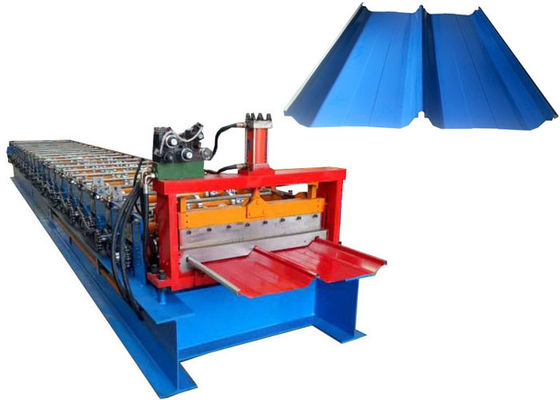

Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized

Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized
Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized

Large Image :  Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized

Product Details:
Place of Origin: CHINA
Brand Name: SHITONG
Certification: CE/ISO9001
Model Number: 820
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 13500$
Packaging Details: THE MAIN MACHINE IS NUDE
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS/ MONTH
Detailed Product Description
Voltage: 380V 50Hz 3Phases Or As Your Requirment Name: Standing Seam Roll Forming Machine
Weight: 8tons Dimension(l*w*h): 10500mm*1400mm*1500mm
Use: For Making Roof Sheet After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

standing seam panel machine

,

standing seam roll former



Self-Lock Roof Sheet Roll Roof Sheet Roll Standing Seam Tile Forming Machine



Quick Details

Warranty:                                                2 YearS

Type:                                                      Tile Forming Machine

Production Capacity:                              12-16m/min

Certification:                                           CE/ISO9001

After-sales Service Provided:                 Online support

Applicable Industries:                             Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms,                                                                             Restaurant,Construction works , Energy & Mining

Condition:                                               New

Tile Type:                                                Colored Steel

Use:                                                        Roof

Place of Origin:                                       Hebei, China (Mainland)

Brand Name:                                          SHITONG

Voltage:                                                  3 Phases 380V 50Hz

Dimension(L*W*H):                                12500mm*1200mm*1100mm

Weight:                                                   5 TON

Machine Under Frame::                         Steel H-beam;

Sidewall ::                                               45# Steel plates;

Roller Stations::                                     18Rows;

Shaft Diameter::                                     75mm;

Main Shaft Material::                              45# steel with finish turning ;

Roller Material::                                      45# Forging Steel with Chromium Plate;

Chromium Plate Thickness::                  0.05mm;

Transmission::                                        Sprocket and Cycle Chain;

Control Cabinet::                                    Delta PLC System

Working Method::                                   Stop to post and post to cut.



Machine component:

passive decoiler                1 set

feeding plat form                1 set

hydraulic cutting system     1 set

roll forming mill                   1 set

PLC control syetem            1 set

out put table                        1 set



main machine pictures:

Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized 0Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized 1Weight 8 Tons Standing Seam Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized 2
