Galvanized Steel Corrugated Sheet Roll Forming Machine Working Speed 10-15 M/Min

China Galvanized Steel Corrugated Sheet Roll Forming Machine Working Speed 10-15 M/Min supplier
Galvanized Steel Corrugated Sheet Roll Forming Machine Working Speed 10-15 M/Min supplier Galvanized Steel Corrugated Sheet Roll Forming Machine Working Speed 10-15 M/Min supplier Galvanized Steel Corrugated Sheet Roll Forming Machine Working Speed 10-15 M/Min supplier

Large Image :  Galvanized Steel Corrugated Sheet Roll Forming Machine Working Speed 10-15 M/Min

Product Details:

Place of Origin: CANGZHOU , CHINA
Brand Name: SHITONG
Certification: CE , ISO9001
Model Number: ST-836

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact me
Packaging Details: Nude packing in the container,fixed well with steel rope. Control cabinet, pump station and all the spare parts with waterproof in the wooden box.
Delivery Time: 35 working days
Payment Terms: T/T, Western Union
Supply Ability: 25 set per month
Contact Now
Detailed Product Description
Name: Corrugated Sheet Roll Forming Machine Working Speed: 10-15m/min
Shaft Material: High Grade 45# Steel Feeding Table: With Handle Wheels
Machine Type: Chains Transmission PLC System: Delta, Siemens
Material Width: 1000mm Material Thickness: 0.3-0.6mm
Drive Type: 5.5kw Motor

Galvanized steel profile roof panel corrugated sheet roll forming machine equipment 111



1. Brief introduction of our machine



The machine production line includes: Manual uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting system, discharge table

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.



2. Specifications of the roll forming production line



1. Suitable material Color steel sheet , galvanized steel sheet,aluminum sheet
2. Installation Dimension (L*W*H): 6.5m*1.5m*1.4m(depend on design)
3. Main motor power About 3KW to 6KW with Cycloidal reducer
4. Hydraulic station power About 3KW to 6KW
5. Hydraulic oil pump CB-E 310
6. Thickness of material 0.2mm~0.8mm
7. Diameter of principal axis Φ70mm to Φ90mm
8. Material expand width 1000,1200,1250mm
9. Electric tension 380V 3phase 50HZ or as the customer's requirements
10. Material of roller High grade 45# forged steel plated with hard chrome plating
11. Controlling system PLC control canbinet
12. Processing speed 3-5m/min
13. Processing precision within 1.00mm (depend on design)
14. Material of cutting blade Cr12 mould steel with quenched treatment
15. Kind of drive 0.6 inch chain link bearing model 6210
16. Roller station 8-20 Rollers
17. Roller material high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing 4.6T


3. The relative service we can provide

1). The warranty of glazed tile roll forming machine

is one year after the client receives the machine.

Within the one year, we will courier the replacement parts to the client free of charge.

2). We offer technical support for the entire life of our machines.

3). We can send our technicians to install and train the workers in the clients' factories with extra cost.



4. PLC Control System

It adopts industrial computer to control.

The target piece’s length is adjustable and digit of it can be adjusted.

Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use.



5. Our company brief

 Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence “the quality first, the prestige first”, we wish to build the best machine for customers. So our company all employee’s enthusiasm welcome the people of different walks of life come to investigate and talk cooperation.



6. Some machine pictures for your reference

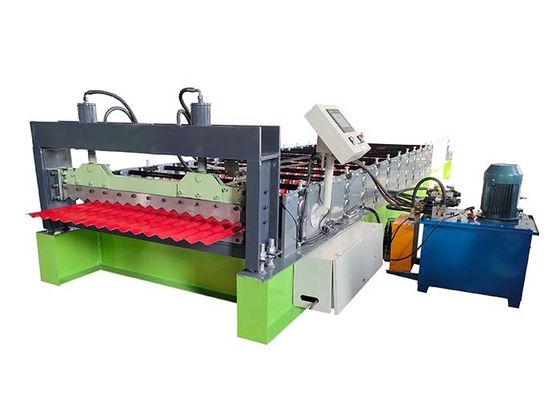

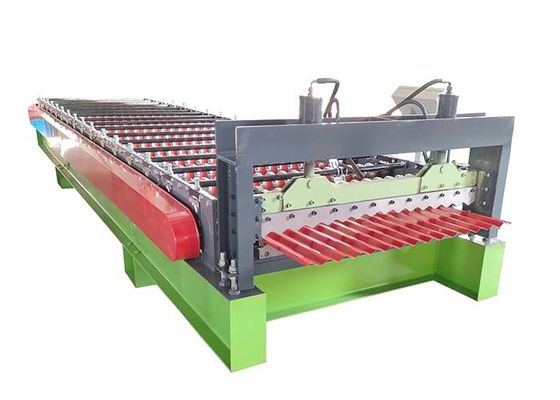

Galvanized Steel Corrugated Sheet Roll Forming Machine Working Speed 10-15 M/MinGalvanized Steel Corrugated Sheet Roll Forming Machine Working Speed 10-15 M/MinGalvanized Steel Corrugated Sheet Roll Forming Machine Working Speed 10-15 M/Min



7. FAQ

1). Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

2). How to visit your company ?

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

3). What can you do if the machine broken?
Our machine's warranty period is 1 year,

if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.

if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
