High Strength Sheet Metal Roll Forming Machines Customized Design For Construction

High Strength Sheet Metal Roll Forming Machines Customized Design For Construction
High Strength Sheet Metal Roll Forming Machines Customized Design For Construction High Strength Sheet Metal Roll Forming Machines Customized Design For Construction High Strength Sheet Metal Roll Forming Machines Customized Design For Construction

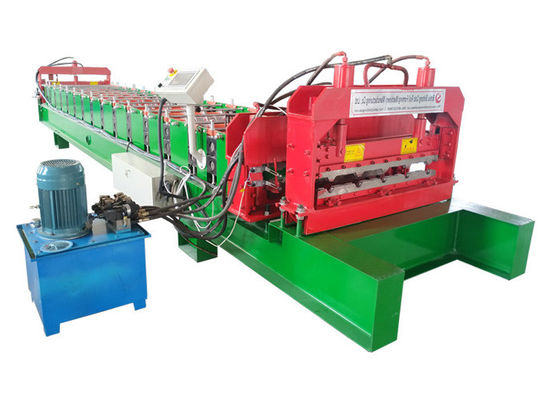

Large Image :  High Strength Sheet Metal Roll Forming Machines Customized Design For Construction

Product Details:
Place of Origin: CANGZHOU , CHINA
Brand Name: SHITONG
Certification: CE , ISO9001
Model Number: SJ-curve
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact me
Packaging Details: Nude packing in the container,fixed well with steel rope. Control cabinet, pump station and all the spare parts with waterproof in the wooden box.
Delivery Time: 34 working days
Payment Terms: T/T, Western Union
Supply Ability: 19 set per month
Detailed Product Description
Feeding Material: Colored Steel Coil Frame Of Machine: 350H Steel
Shaft Material: High Grade 45# With Key-way Pump Power: 5.5KW LICHAO Shanghai
Machine Type: Single Layer Machine Voltage: 440v , 3phase , 60Hz
Name: Sheet Metal Roll Forming Machines Length Tolerance: +/- 2mm
High Light:

metal roof roll forming machine

,

metal roofing sheet making machine

Hydraulic trapezoidal steel roofing metal sheet roll forming machines for construction usage



1. The general process flow of production line

This machine is widely used in many kinds of industrial factory, workshop, civilian buildings and so on, it has advantage of pretty appearance, durable using lower cost,high efficiency,reliable working and so on.

This machine line can work automatically by PLC control system, it is very easy to operate, welcome all customers from the world to inquiry.



2. Specifications of the roll forming production line

Name
Model/name
Quantity
Technical description

1.Decoiling system

Manual decoiler

1 set
Capacity: Max. 5Ton,Un-powered,Manually control steel coil inner bore shrinkage and stop,



2.Forming machine
Material Guiding System
1 set
For feeding in a right position no Deviation.
Precutting Device
1 set
Prevent the profile being unbeautiful because of the rough material.
Main Roll Forming Machine
1 set
About 16 steps, motor driving and chain transmission. Wall plate structure.
3.Cutting system
Hydraulic Cutting Device

Precutting and postcutting both.
4.Hydraulic system
Hydraulic Station
1 set
Providing the power of cutting.

5.Control system

PLC Control System

1 set
PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system
discharge rack
3 PC
no power.



3.  The usage and application of the machine

This machine line can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors. They have many advantages, such as low cost, easy installation, short building period, recycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theaters, factories, warehouses, garages, exhibition centers, etc.



4. The advantage of our machine

1). This equipment use high level automatic control software, the realization of information management.

2). The automation control system USES high integration of network, the automation system performance is superior.

3). This machine also has the operation, maintenance, maintenance and debugging machinery, mold the advantages of easy replacement.

4). Pressure plate, solemn elegant, beautiful novel, and smooth appearance, uniform corrugated, utilization rate is high, strength, producing a high degree of automation, low cost, durable.



5. Some machine pictures for your reference

 High Strength Sheet Metal Roll Forming Machines Customized Design For Construction 0High Strength Sheet Metal Roll Forming Machines Customized Design For Construction 1High Strength Sheet Metal Roll Forming Machines Customized Design For Construction 2



6. Frequently asked questions

1): What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.

2): How is this machine's service life?

A:In the normal maintenance,the service life at least 8 years.

3): Can you make the machine according to my design type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
