Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa

Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa

China Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa supplier
Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa supplier Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa supplier Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa supplier

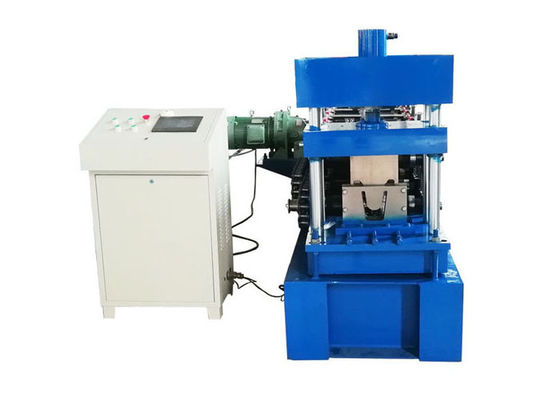

Large Image :  Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa

Product Details:

Place of Origin: HEBEI
Brand Name: ST
Certification: CE, ISO
Model Number: 70

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: contact the sales,she will give you the best offer
Packaging Details: the machine is nude
Delivery Time: 30-40 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Name: Sheet Metal Roll Forming Machines Thickness Of Coil Sheet: 0.7-3mm
Weight Of Machine: 7 Tons Hydraulic Oil: 40# Hydraulic Oil
Hydraulic Pressure: 10-12MPa Hydraulic Station Power: 15 KW

u shape metal sheet construction steel purlin roll forming machine



1. Company information



We have established in 2001 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.



2. Technical parameters:





Raw material
material spec sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.5-3mm
Machine details
roller material High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material High grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 80mm
forming steps 12 rows
productivity 20-25m/min
hydraulic station power 22 KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
appearance size 7500mm*1150mm*1510mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirements



Device Configuration

No   number
(1) Manual decoiler 1 set
(2) Guiding device 1 set
(3) Main roll forming machine 1 set
(4) Hydraulic cutting device 1 set
(5) PLC electric control system 1 set
(6) Hydraulic driving system 1 set
(7) Special tools and parts 1 set





Characteristic



  • Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
  • The main components will stable performance, good reputation, global procurement.
  • Using a number of control technology, automation degree is high.
  • Encoder count, length accurately.

3. Machine picture
Weight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPaWeight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPaWeight 7 Tons Sheet Metal Roll Forming Machines U Shape Hydraulic Pressure 10-12MPa
4. Installation and training:

A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

B. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.



5. Our Machine Advantage

1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.



6. FAQ

1. Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2. Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3. Q: what is the MOQ?
A: One set
4. Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6. Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7. Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8. Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9. Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
