C / U Channel Light Steel Keel Roll Forming Machine None Stop Cutting System

C / U Channel Light Steel Keel Roll Forming Machine None Stop Cutting System

China C / U Channel Light Steel Keel Roll Forming Machine None Stop Cutting System supplier
C / U Channel Light Steel Keel Roll Forming Machine None Stop Cutting System supplier C / U Channel Light Steel Keel Roll Forming Machine None Stop Cutting System supplier C / U Channel Light Steel Keel Roll Forming Machine None Stop Cutting System supplier

Large Image :  C / U Channel Light Steel Keel Roll Forming Machine None Stop Cutting System

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 80

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Machine Size:: 5.6*1.2*1.5m Thickness Of Matrial: 0.5-1mm
Forming Steps: 12 Steps Machine Frame: High Strength Steel
Voltage: 380V 60Hz (as Per Local Requirement) Name: Light Steel Keel Roll Forming Machine

None stop cutting system light steel keel roll forming machine for c and u channel


1. None stop cutting system light steel keel roll forming machine for c and u channel



---- Low cost, light weight but high strength, short building period, and re-cycle use

---- Save material , no waste.

---- Easy operation, low maintenance cost

---- Infinite sizing(any size within machine range),help to save material

---- Optional Punch hole at any position of purlin web side and flange side



2. None stop cutting system light steel keel roll forming machine for c and u channel  parameters



De-coiler

1). Material coil inner diameter: 450mm-550mm

2). Max coil Width:400mm

3). Carrying capacity: 1.5T

Forming System

1). Roller station:10 stations

2). Shaft material:45# steel

Outer diameter:40mm

Roller material: GCr12MoVo

3). Transport: Gear Driving

4). Forming Speed: 20m/min

5). Motor:3kw

Cutting System

1). Hydraulic Station:1set

2). With hydraulic station, motor 3 KW

3). Hydraulic cutting

4). Blade material: Cr12 steel with quenched treated 60-62℃

5). Cutting system: Advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.

Control System

1). Screen: touch screen

2). PLC: Delta

3). Automatic length measurement

4). Automatic quantity measurement

5). Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved

6). Length inaccuracy can be amended easily



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. roll forming machine company profiles



Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Busniess terms



Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 1 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 1 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.


5. FAQ



1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.

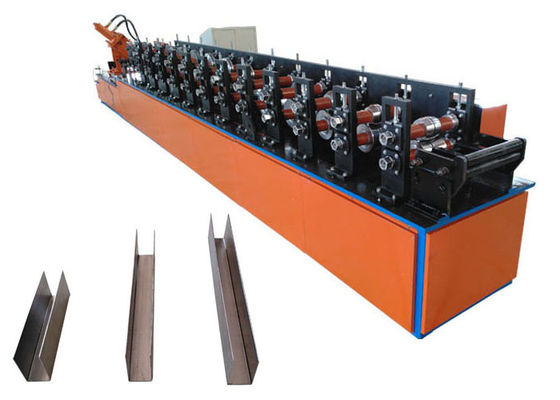

6. Roll forming machine pictures:
C / U Channel Light Steel Keel Roll Forming Machine None Stop Cutting SystemC / U Channel Light Steel Keel Roll Forming Machine None Stop Cutting System
