Steel Structure Concrete Floor Tile Making Machine High Strength Big Wave Length

China Steel Structure Concrete Floor Tile Making Machine High Strength Big Wave Length supplier
Steel Structure Concrete Floor Tile Making Machine High Strength Big Wave Length supplier Steel Structure Concrete Floor Tile Making Machine High Strength Big Wave Length supplier Steel Structure Concrete Floor Tile Making Machine High Strength Big Wave Length supplier

Large Image :  Steel Structure Concrete Floor Tile Making Machine High Strength Big Wave Length

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 686

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Machine Size:: 9.6*1.2*1.5m Middle Plate: 16mm
Name: Concrete Floor Tile Making Machine Working Speed: 8-12m/min
Cutter Blade: Cr12 Roller Material: GB45# Steel

Steel structure metal 688 floor deck roll forming machine use galvanized floor decking


1. Steel structure metal 688 floor deck roll forming machine use galvanized floor decking



Features of Floor Decking Roll Forming Line:

The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.



Applications of Floor Decking Roll Forming Line:

The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.



Process Flow of Floor Decking Roll Forming Line:

Uncoiler -Feeding -Straightening-Roll Forming -Cutting-Exit Rack



2. Steel structure metal 688 floor deck roll forming machine use galvanized floor decking  parameters

Suitable Material Material GI, PPGI, PPGL
Width 1200 mm
Thickness 0.8-1.2 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 24 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 90mm
Material of cutting blade Cr12 Heat Treatment
Speed 15-20 m/min
Side plate thickness 20 mm
Chain size 2 inch
Total power 22 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 12000mm*1800mm*1700mm
Weight(About) 13 tons
Length measurement Encoder
Control mode Delta PLC
Operating mode Button +Delta Touch screen



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.



4. Business terms:



Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.



5. FAQ(about our roll forming machine)



1) Q:  How to choose the machine,any information i need to offer?

A: You need to provide the product drawings.

2) Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.

3) Q: Do you provide customized?

A: Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.

4) Q: What can you do if the machine broken?

A; Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.

5)  Q::Do you accept private label? Customize logo printed or package ?

A:Yes,they are all welcome as your request.

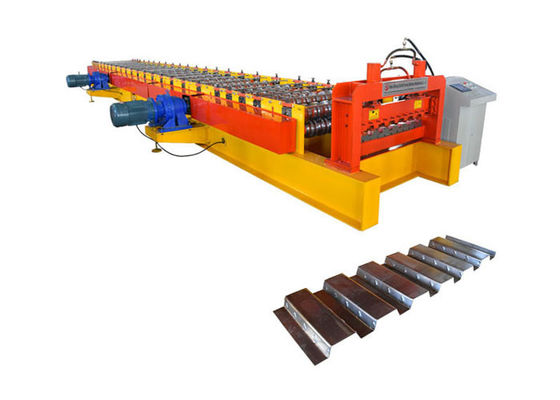

6. Roll forming machine pictures:

Steel Structure Concrete Floor Tile Making Machine High Strength Big Wave LengthSteel Structure Concrete Floor Tile Making Machine High Strength Big Wave LengthSteel Structure Concrete Floor Tile Making Machine High Strength Big Wave Length
