Computer Control PPGI Steel Sheet Roll Forming Machine For Construction Material

Good quality Roofing Sheet Roll Forming Machine for sales
I'm Online Chat Now

Computer Control PPGI Steel Sheet Roll Forming Machine For Construction Material

China Computer Control PPGI Steel Sheet Roll Forming Machine For Construction Material supplier
Computer Control PPGI Steel Sheet Roll Forming Machine For Construction Material supplier Computer Control PPGI Steel Sheet Roll Forming Machine For Construction Material supplier Computer Control PPGI Steel Sheet Roll Forming Machine For Construction Material supplier

Large Image :  Computer Control PPGI Steel Sheet Roll Forming Machine For Construction Material

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 20-200-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Machine Size:: 9.6*1.2*1.5m Machine Color:: Blue And Orange
Material:: Galvanized Coil Usage:: Roofing Sheet Making
Machine Power: Electric And Hydraulic Name: Steel Sheet Roll Forming Machine

Computer control PPGI steel sheet matal roll forming machine for construction material


1. Full English control program sheet matal roll forming machine for construction material
---- Easy operate program in the PLC, friend interface let you learn it very fastly.
---- Machine can produce any length roofing sheet.
---- Automatic control system help you produce the correctly quantity roof you need.
---- Long life time and easy repair can save you lots of time.


2. Computer control PPGI steel sheet matal roll forming machine for construction material parameters



Raw material
material PPGI, PPGL, GI, Steel, Aluiminum
thickness of coil sheet 0.3 to 0.8 mm
material expand width 914mm/1000mm/1200mm/1220mm/1250mm
Efficiency width 695mm/750mm/1000mm/1050mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm
main frame 300-400mm H steel
forming steps 15 stations
productivity 8-12 m/min
hydraulic station power 4 KW
hydraulic pressure 10-12MPa
appearance size 6700mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating
Service life 10 years



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. Shitong cold roll forming machine company profiles


Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


4. FAQ (about our roll forming machine)



1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.

5. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.

6. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

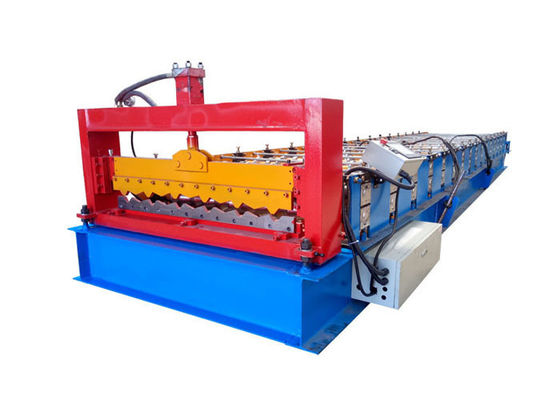

5. Roll forming machine pictures:
Computer Control PPGI Steel Sheet Roll Forming Machine For Construction MaterialComputer Control PPGI Steel Sheet Roll Forming Machine For Construction Material
