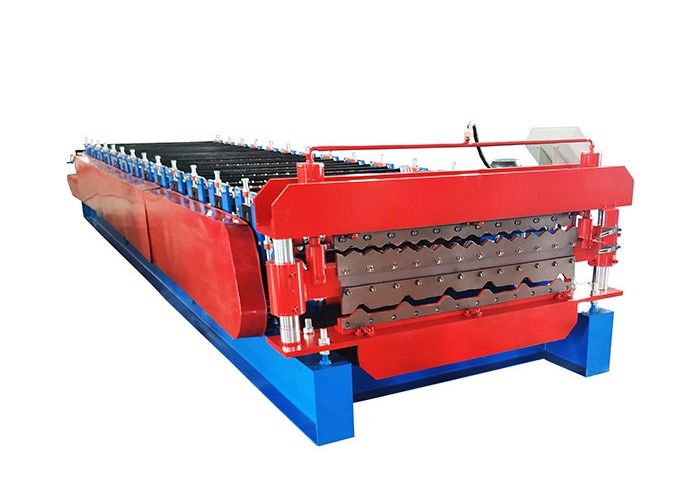

CE Glazed Tile Ibr Roof Sheet Metal Roll Forming Machine

CE Glazed Tile Ibr Roof Sheet Metal Roll Forming Machine
CE Glazed Tile Ibr Roof Sheet Metal Roll Forming Machine

Large Image :  CE Glazed Tile Ibr Roof Sheet Metal Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: ST
Certification: CE ISO
Model Number: 988-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Voltage: 380V Name: Double Layer Roll Forming Machine
After-sales Service Provided: Online Support Warranty: 1 Year
Control System: PLC Power(w): 5.5 Kw
Diameter Of Shafts: 70mm Color: Blue
Thickness: 0.-0.8mm Speed: 15-20 M/min
High Light:

metal ibr roll forming machine

,

glazed tile metal roll forming machine

,

ibr metal roll forming machine

Glazed tile + IBR roof sheet double layer roll forming machine from Shitong machinery

Double layer roofing tile machine: can produce two type sheets, one corrugated sheet and one IBR sheet. The input material are both 1200 mm width with thickness 0.3-0.8mm. Machine speed 20-25 m per minute. With pre-cutting device and double inches chain. This machine cheaper and stable. Widely used in South America zone. Expecially Bolivia. We can also supply you the PPGI and GI coils. We know some good supplier. We can put the coils with the machine in the same container.

Processing Flow Diagram of Machine:



CE Glazed Tile Ibr Roof Sheet Metal Roll Forming Machine 0

Production Process:



Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving



Technical parameters:

Products Description
Item
Parameters
Name
Double steel tile roll forming machine
Product
Corrugated steel tile, trapezoidal steel tile
Forming speed(m/min)
8~15
Roller material
#45 Steel
Control system
Delta PLC control system


Roller driven type
Chain transmission


Operation
Touch screen and button


Hydraulic station motor power(KW)
4


Main motor power(kw)
5.5


Total weight(kg)
about 5500


voltage
380V or customed


color
According to customer requirements




Standard Configuration:

5 tons Manual decoiler 1 set
Main roll forming machine 1 set
Hydraulic pump system 1 set
PLC control system 1 set
Receiving Table 2 sets
Spare parts 1 box



Spare Parts

CE Glazed Tile Ibr Roof Sheet Metal Roll Forming Machine 1

Packing Method



Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold



Payment Term



30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.



Warranty



Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.



We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,shutter door machine, floor decking machine and other associated equipment. Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.
