Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers

Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers
Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers

Large Image :  Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 25-210-1050-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Delivery Time: 48 working days
Payment Terms: L/C,T/T
Supply Ability: 12 sets/month
Detailed Product Description
Use: Wall And Roof Cutting Blade Material: Cr 12 High Grade Steel
Rollers: 22 Rollers Sizes: 10.9*1.5*1.51m
Main Frame: 300H Steel Hydraulic Oil: 40# Hydraulic Oil
Speed: 20-25m/min Material Of Frame: Q235
Model: 25-210-1050 Ornigal Country: Cangzhou China
Certification: CE And ISO
High Light:

roof tile roll forming machine

,

roof panel roll forming machine



automatic trapezoidal PPGL wall and roof metal roofing cold roll forming machine





1.Equipment For Process Flow

Consist of Decoiler, Main roll forming machine, Cutting device, Hydraulic drive system, Electric control cabinet, ect.

Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers 0

Manuel decoiler-----------------------------1set
full roll forming machine-------------------1set
hydraulic cutting-----------------------------1set
plc control box--------------------------------1set
ischarge table --------------------------------1set





2. The roll forming machine details:



coil width  1200mm
efficiency width  1050mm
Material Thickness 0.3—0.7mm
Production speed  20-25m/min
Roller Stations 22stations
Roller material 45# steel, coated with chrome
Maim Motor Power 7.5kw

Hydraulic cutting Power

4kw
Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-2mm
Electric Source

380V, 50HZ,3 phases

Also can satisfy customer’s require

Control System PLC with touch screen
Way Of Drive

1.2 inches single chain

size  10.9*1.5*1.51m
frame material  Q235

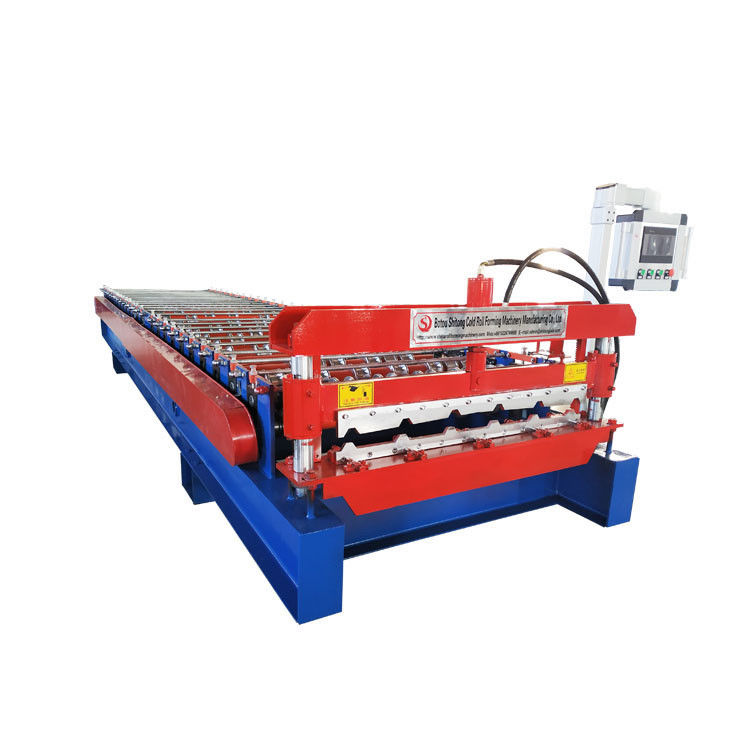

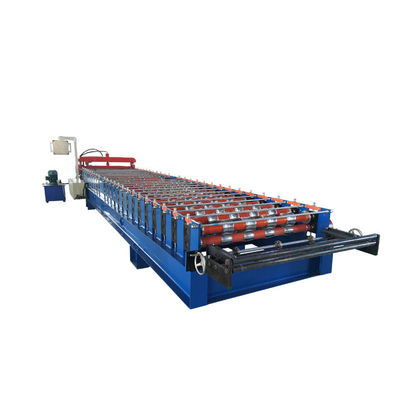

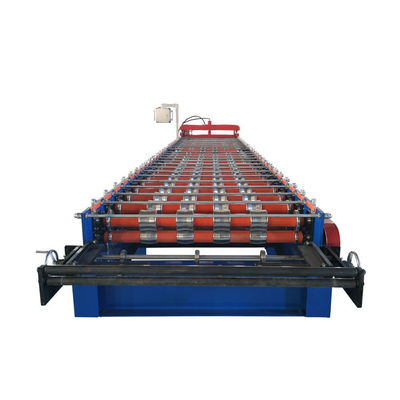

25-210-1050-1200 roof panel roll forming machine PICS

Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers 1Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers 2Trapezoidal PPGL Metal Roofing Sheet Roll Forming Machine With 22 Rollers 3
