Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine

Good quality Roofing Sheet Roll Forming Machine for sales
I'm Online Chat Now

Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine

China Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine supplier
Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine supplier Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine supplier Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine supplier

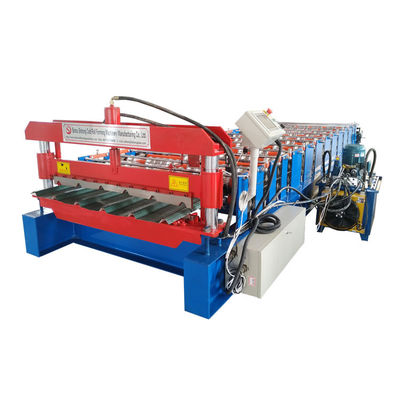

Large Image :  Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 24-212-1060-1250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Delivery Time: 48 working days
Payment Terms: L/C,T/T
Supply Ability: 12 sets/month
Contact Now
Detailed Product Description
Use: Wall And Roof Voltage: 380v/220/415 50hz 3 Phases As You Want
Cutting Blade Material: Cr 12 High Grade Steel Rollers: 13 Rollers
Sizes: 6.9*1.5*1.51m Main Frame: 300H Steel
Hydraulic Oil: 40# Hydraulic Oil Speed: 20-25m/min
Material Of Frame: Q235


full automatic iron sheet trapezoid color steel roof plate cold roll forming machine

1.Application
The roof tile roll forming machine is widely used in industrial and civil architecture, warehouses, large span steel structure housing the roof, walls and interior and exterior decoration and so on.

Characteristic
The machine has lightweight, high strength, color-rich, convenient construction, earthquake, fire, rain, long life, maintenance-free characteristics.
(1) The roof tile roll forming machine using a high level of automatic control software, production information management.
(2) The entire unit automation control system uses highly integrated network, enabling superior performance automation systems.
(3) The pressure-watt machine also has the operation, maintenance, maintenance and mechanical commissioning mold advantages of easy replacement.

2.Equipment For Process Flow
Consist of Decoiler, Main roll forming machine, Cutting device, Hydraulic drive system, Electric control cabinet, ect.
Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine


3. The roll forming machine details:


coil width  1250mm
efficiency width  1060mm
Material Thickness 0.3—0.7mm
Production speed  20-25m/min
Roller Stations 13stations
Roller material 45# steel, coated with chrome
Maim Motor Power 7.5kw

Hydraulic cutting Power

4kw
Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-2mm
Electric Source

380V, 50HZ,3 phases
Also can satisfy customer’s require

Control System PLC with touch screen
Way Of Drive

1.2 inches single chain


details pics of 24-212-1060-1250 roof panel roll forming machine



Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling MachineFull Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Cut-off tool: Use of high strength wear thicker type mold, it is advantageous to avoid cutting off at deformation.


Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine

  • Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect.
  • The machine Section production and then splicing it
  • Cr12 Heat Treatment,roller surfaces polishing, hard plating .
  • Support structure in the form of roller shaft.
  • All motors use dedicated motor, has excellent mechanical properties.
  • Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping.

 Company introduction:

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.



Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.

Full Automatic Iron Roofing Sheet Roll Forming Machine , Cold Roofing Rolling Machine
