BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD
Home ProductsRoofing Sheet Roll Forming Machine

4 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet

China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
My requirements are completely, I know that. But you provide enough patience and technic suggestion. Finally I got the best solution and good quality machine from you. Thank you very much!

—— Thomas

The machine is good, I bought it three years, still in a good working situation.If any body ask me how about SHITONG MACHINERY, I will recommend them to buy the machine from SHITONG MACHINERY.

—— Otto Mashaba

This is my second time buy machine from this company, because my besiness is expanded in the past three years. The first machine I bought from SHITONG is good, so when I need new machines, I decide buy from them again.

—— Frances Badical

Thanks for support me on my machine project! Wish your business booming and have a bright future!

—— Mahammed

I'm Online Chat Now

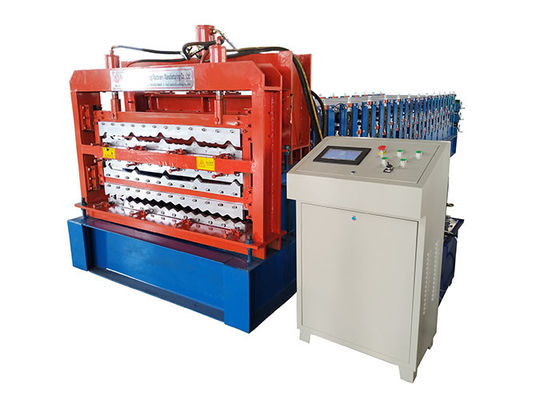

4 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet

4 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet
4 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet 4 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet 4 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet 4 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet

Large Image :  4 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 1000/828/840
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Detailed Product Description
Machine Size:: 8.6*1.5*1.8m Thickness Of Matrial: 0.3-0.8 Mm
Working Speed: 8-12m/min Total Power: 4 KW
Cutter System: Hydraulic Cutting System Control System: PLC Automatic Control System
High Light:

metal roof making machine

,

roof panel roll forming machine

Color steel combination different profile roofing sheet roll forming machine



1. Color steel combination different profile roofing sheet roll forming machine


1. Electric elements: Mitsubishi PLC & transducer from Japan.
2. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3. Well resisting active shaft: High grade No. 45 carbon wrought steel.
4. Cutter blade: Cr12 mould steel with quenched treatment
5. Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.





2. Color steel combination different profile roofing sheet roll forming machine parameters

parameters
Production Capacity 8-12 m/min
Power(W) 5.5 + 4KW
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 8600*1500*1700mm
Weight  7T
Suitable material Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material 1000mm
Rows of rollers 12/13/14 rows
Material of roller High grade 45# steel(plated chrome on surface)
Thickness of raw material 0.7-1.2 mm
Certification ISO
Tile Type Tile Cutting Machine



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Comapny advantage:

- metal studs track roll forming machine/drywall steel material light keel machine consist of one set decoiler, one sets of feeding platforms and one roll forming core,and one cutting dies.

- metal studs track roll forming machine/drywall steel material light keel machine size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request

- When we finish metal studs track roll forming machine/drywall steel material light keel machine, we will test the machine and adjust the machine many times to be sure the machine have a perfect status and when customer receive the machine, the machine can be used very easy


5.
Service



Pre-sale Service

1. Send you invitation letter, If you wanna visit our factory and check the machines.

2. Good Quality Manufacturer competitive price Quick Response Reliable Service for you.

Selling Service

1. Short delivery time after deposit 30-40 days.

2. Email you the production schedule and make prompt delivery for you.

3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.

4. Always be here for your service 12 hours per day.

After-sale Service

1. We welcome all feedback about our products and prices and services from our customers.

2. Any questions, please contact with us freely by E-mail or Telephone.

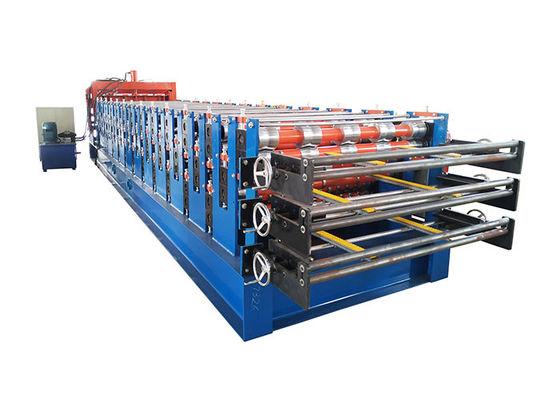

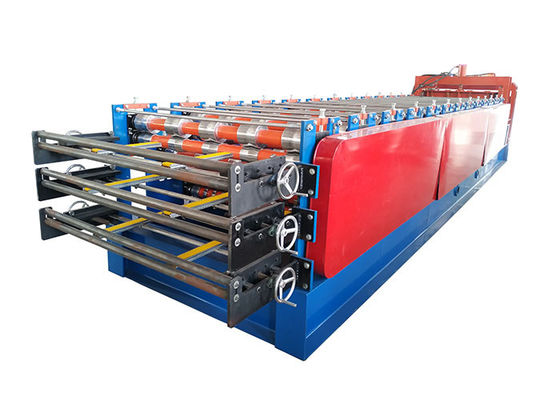

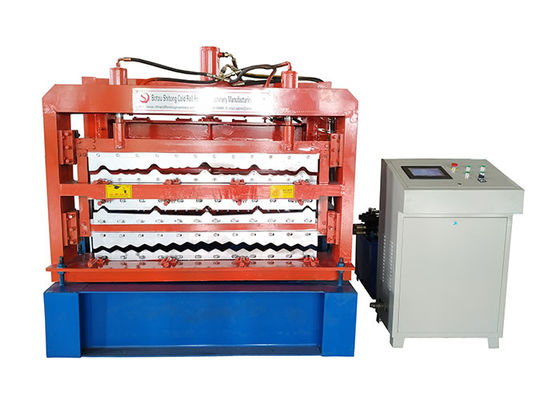

6. Roll forming machine pictures:
4 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet 04 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet 14 KW Power Roofing Sheet Roll Forming Machine For Three Roofing Sheet 2
